Esylux
PD-C 360/8 DALI-2 (EP10428203)
Part numberEP10428203EAN / GTIN4015120428203HS code9031.49
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

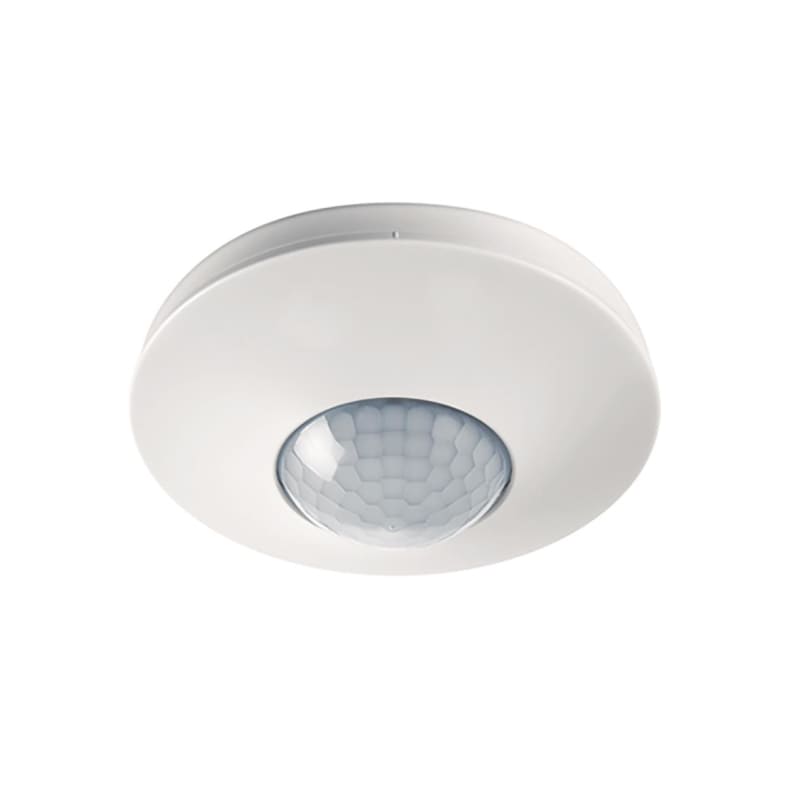

Esylux EP10428203 Presence detector PD-C 360/8 DALI-2.
Technical Specifications
- Manufacturer part number (MPN)
- EP10428203
- EAN / GTIN
- 4015120428203
- Sales unit
- pcs
- Background monitoring
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Suitable for ceiling mounting
- Yes
- Compatible with Casambi
- No
- With acoustic sensor
- No
- With connection cable
- No
- Voltage supply over bus
- No
- Suitable for wall mounting
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Radio frequency bidirectional
- No
- Model
- Presence detector
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9010
- Transparent
- No
- With bus connection
- Yes
- Substation input
- Yes
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- No
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- Yes
- Switch-off delay self-learning
- No
- DALI-2 certified
- Yes
- Optimum mounting height
- 3 m
- Max. reach sideways
- 4 m
- Max. reach frontally
- 3 m
- Diameter reach on floor
- 8 m
- Min. switch-on time
- 60 s
- Max. duty cycle
- 240 min
- Min. depth of built-in installation box
- 24 mm
- Height
- 62 mm
- Built-in depth
- 24 mm
- Diameter
- 108 mm
- Built-in diameter
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9031.49
Cross References
- EAN 4015120428203
- SAP 1200460979
- Code 82542695
Product Documentation
Document preview: PD-C 360/8 DALI-2 (EP10428203) — Specification sheet
