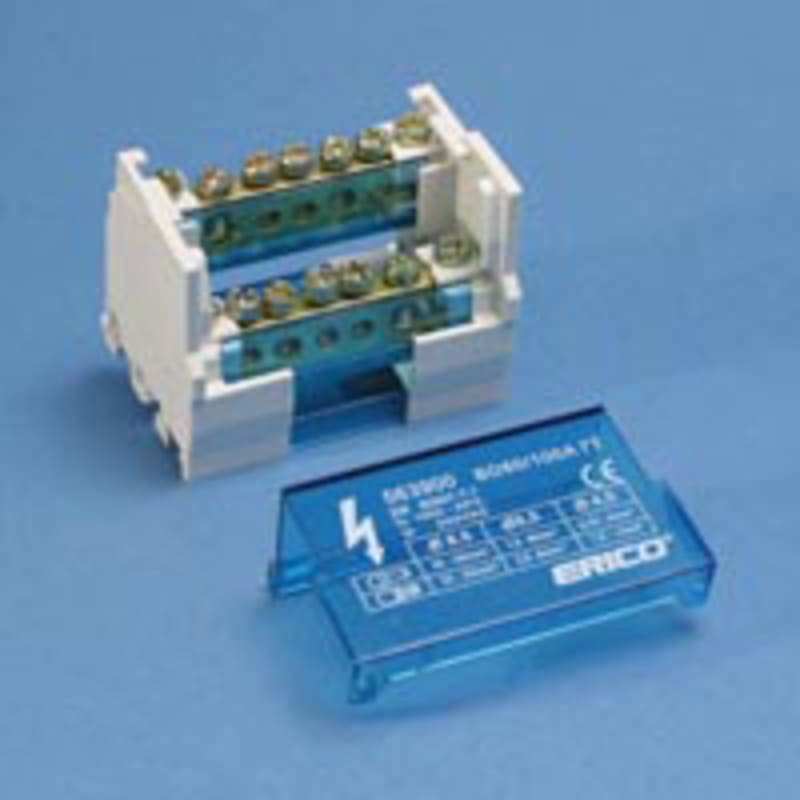

nVent ERIFLEX BD80100AL Two Pole Distribution Block, 80/100 A, 2 Line Side & 13 Load Side Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 2-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- BD80100AL EAN / GTIN: 3479775639109 Sales unit: pcs Article Number: 563910 Max Current Rating, IEC: 100A Short Term Withstand Current (Icw) 1s: 4.5kA Peak Short Circuit Current (Ipk): 20kA Max Working Voltage, IEC (Ui): 500V Line Side Number of Connections: 2 Line Side Compact Stranded Wire Size: 10 - 25 mm² Line Side Stranded Wire Size - Ferrule: 10 - 25 mm² Load Side Number of Connections: 13 Load Side Compact Stranded Wire Size: (6) 1,5 - 4 mm²;(7) 2,5 - 6 mm² Load Side Stranded Wire Size - Ferrule: (6) 0,75 – 4 mm²;(7) 1,5 – 6 mm² Depth (D): 1.97" / 50mm Height (H): 1.97" / 50 mm Width (W): 5.12" / 130 mm Unit Weight: 0.46 lb / 0.21 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856800378 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 2 Conductor cross section solid (solid, stranded): 1.5–6 mm² Max. rated current: 100 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775639109
- SAP 1000264411
- Code 8251634
Product Documentation
More from Eriflex
Eriflex
nVent ERIFLEX TD100125ALL Four Pole Distribution Block, 100/125 A, 1 Line Side & 14 Load Side Connections
Eriflex
Distr. Block 4POL TD100/125A
TD100125
Eriflex
nVent ERIFLEX FBC109 FBC nVent ERIFLEX Flexibar/Cable to Busbar Clamp, 0.39" Busbar Thickness
Eriflex
nVent ERIFLEX FS32 FS Spacer Clamp, Snap Close, 1.25" Max
Eriflex
nVent ERIFLEX 564030 Flat Braided Power Shunt, 2,368.23 kcmil, 19.7"
Eriflex
nVent ERIFLEX MBJ502006 MBJ Grounding and Bonding Braid, Tinned Copper, 250 A Ampacity, 98.68 kcmil, 7.874", 0.256" Hole
Eriflex
Insulated.Copper braid FR240-300SCS (2800181 (758638))
Eriflex

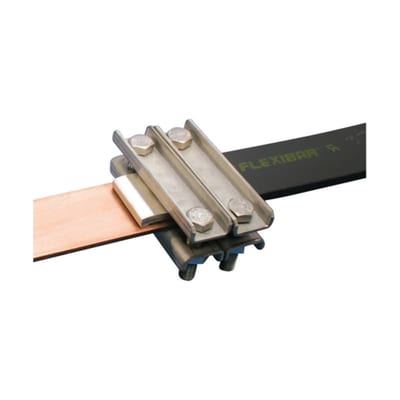

nVent ERIFLEX HCBC120 HCBC High Current Busbar Clamp, 4.72"
