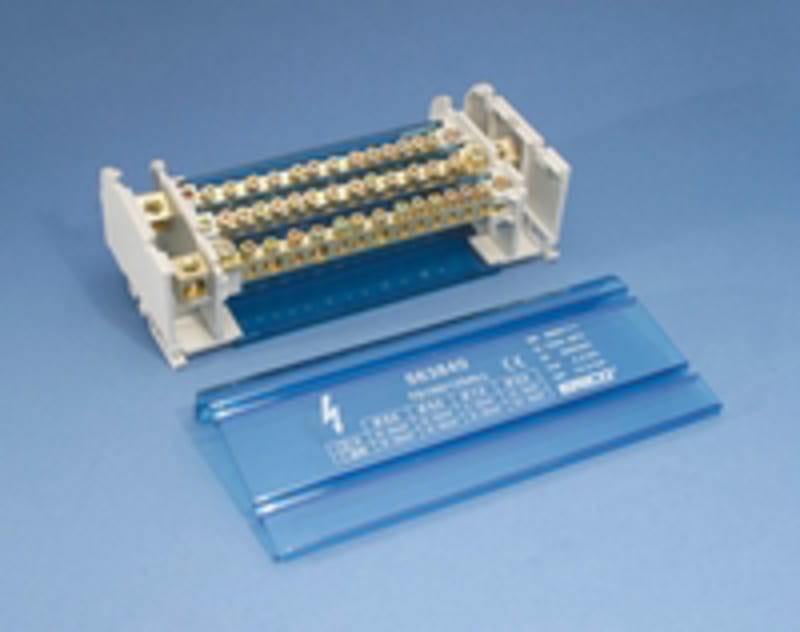

nVent ERIFLEX TD100125ALL Four Pole Distribution Block, 100/125 A, 1 Line Side & 14 Load Side Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 4-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- TD100125ALL EAN / GTIN: 3479775638409 Sales unit: pcs Article Number: 563840 material: Thermoplastic;Brass Max Current Rating, IEC: 125A Short Term Withstand Current (Icw) 1s: 4.5kA Peak Short Circuit Current (Ipk): 21kA Max Working Voltage, IEC (Ui): 690V Line Side Number of Connections: 1 Line Side Compact Stranded Wire Size: 10 - 35 mm² Line Side Stranded Wire Size - Ferrule: 10 - 35 mm² Load Side Number of Connections: 14 Load Side Compact Stranded Wire Size: (11) 2,5 - 6 mm²;(1) 10 - 25 mm²;(2) 10 - 35 mm² Load Side Stranded Wire Size - Ferrule: (11) 1,5 – 6 mm²;(1) 6 – 16 mm²;(2) 10 – 25 mm² Depth (D): 1.97" / 50mm Height (H): 3.54" / 90 mm Width (W): 7.17" / 182 mm Unit Weight: 1.21 lb / 0.55 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856878148 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 4 Conductor cross section solid (solid, stranded): 2.5–35 mm² Max. rated current: 125 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775638409
- SAP 1000264409
- Code 8227690
Product Documentation
More from Eriflex
Eriflex
Distr. Block 4POL TD100/125A
TD100125
Eriflex
nVent ERIFLEX FBC109 FBC nVent ERIFLEX Flexibar/Cable to Busbar Clamp, 0.39" Busbar Thickness
Eriflex
nVent ERIFLEX FS32 FS Spacer Clamp, Snap Close, 1.25" Max
Eriflex
nVent ERIFLEX 564030 Flat Braided Power Shunt, 2,368.23 kcmil, 19.7"
Eriflex
nVent ERIFLEX MBJ502006 MBJ Grounding and Bonding Braid, Tinned Copper, 250 A Ampacity, 98.68 kcmil, 7.874", 0.256" Hole
Eriflex
Insulated.Copper braid FR240-300SCS (2800181 (758638))
Eriflex
nVent ERIFLEX HCBC120 HCBC High Current Busbar Clamp, 4.72"
Eriflex
nVent ERIFLEX TRC630A Four Pole Distrib. Block with Threaded Bars, Flat, 630 A
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TD100125ALL?
- TD100125ALL can be ordered from cballast.com as a Eriflex catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eriflex product?
- The manufacturer part number is TD100125ALL.
- What is the HS code for TD100125ALL?
- The customs tariff (HS) code for TD100125ALL is 8536.90.
- Who manufactures TD100125ALL?
- TD100125ALL is a Eriflex product in the Electrical Components range.
- Is a datasheet available for TD100125ALL?
- Yes — the TD100125ALL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TD100125ALL?
- The minimum order quantity is 1.
- Is TD100125ALL available?
- Yes — TD100125ALL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
