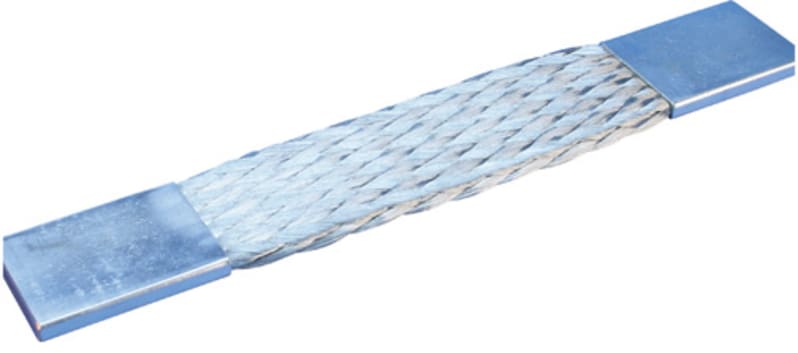

nVent ERIFLEX 564030 Flat Braided Power Shunt, 2,368.23 kcmil, 19.7"
Pricing
Request a quote
We reply within 24 hours
Product Description
PBC Flat Braided Power Conductor.
Technical Specifications
- Manufacturer part number (MPN)
- 564030
- EAN / GTIN
- 3479775640303
- Sales unit
- pcs
- Material
- Copper
- Finish
- Tinned
- Wire Diameter
- 0.01" / 0.15mm
- Cross Section
- 2368.23kcmil / 1200mm²
- ∆T 30 K
- 1982A
- ∆T 50 K
- 2626A
- Length (L)
- 19.7" / 500mm
- A
- 4.92" / 125 mm
- B
- 4.72" / 120 mm
- C
- 0.69" / 17.5 mm
- 2 Bar Current Coefficient
- 1.6
- Unit Weight
- 15.79 lb / 7.16 kg
- UPC
- 782856854753
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Conductor material
- Copper
- Conductor surface
- Tinned
- Nominal cross section conductor
- 1200 mm²
- Conductor category
- Class 5 = flexible
- Shape of conductor
- Flat
- Braided
- Yes
- Outer diameter approximate
- 120 mm
- Cable width approximate
- 120 mm
- Cable height approximate
- 17.5 mm
- Insulated
- No
- With connecting lugs
- Yes
- Connection lugs drilled
- No
- With cable lugs
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 7413.00
Cross References
- EAN 3479775640303
- SAP 1200008234
- Code 8533028
Product Documentation
