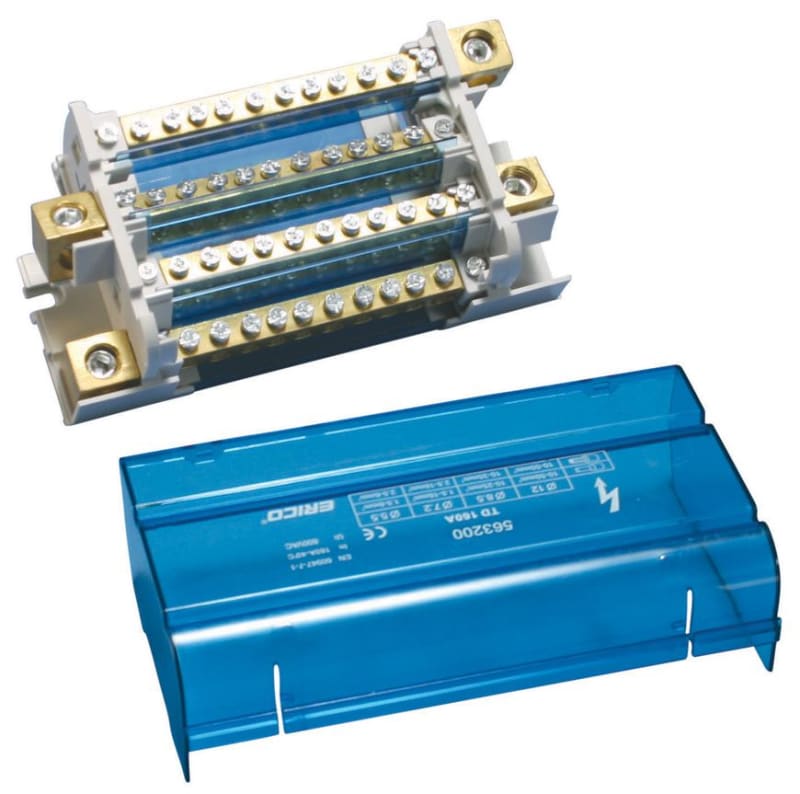

nVent ERIFLEX TD160A Four Pole Distr. Block, 160 A, 1 Line Side & 11 Load Side Connections, 1.97" Dp
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 4-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- TD160A EAN / GTIN: 3479775632001 Sales unit: pcs Rated current: 160 A Article Number: 563200 material: Thermoplastic;Brass Max Current Rating, IEC: 160A Short Term Withstand Current (Icw) 1s: 8.2kA Peak Short Circuit Current (Ipk): 35kA Max Working Voltage, IEC (Ui): 690V Line Side Number of Connections: 1 Line Side Compact Stranded Wire Size: 10 - 50 mm² Line Side Stranded Wire Size - Ferrule: 10 - 50 mm² Load Side Number of Connections: 11 Load Side Compact Stranded Wire Size: (1) 2,5 - 6 mm²;(7) 2,5 - 16 mm²;(3) 10 - 35 mm² Load Side Stranded Wire Size - Ferrule: (1) 1,5 – 6 mm²;(7) 1,5 – 16 mm²;(3) 10 – 25 mm² Depth (D): 1.97" / 50mm Height (H): 3.54" / 90 mm Width (W): 6.89" / 175 mm Unit Weight: 1.34 lb / 0.61 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856443223 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 4 Conductor cross section solid (solid, stranded): 2.5–35 mm² Max. rated current: 160 A With N-rail: No With PE-rail: No Country of origin: France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775632001
- SAP 1000264346
- Code 8227388
Product Documentation
More from Eriflex
Eriflex
nVent ERIFLEX FC8032 FC nVent ERIFLEX Flexibar to Busbar Clamp, 3.15" Busbar Width, 1.26"
Eriflex
nVent ERIFLEX TD80100ALL Four Pole Distribution Block, 80/100 A, 2 Line Side & 13 Load Side Connections
Eriflex
nVent ERIFLEX BC100 BC Ribbed Steel Busbar Clamp, 3.94" Busbar Width
Eriflex
nVent ERIFLEX 561165 Splice Block, Flexibar-Cable, 335 A UL, Aluminum
Eriflex
nVent ERIFLEX 564150 Flat Braided Power Shunt, 300 kcmil, 19.7"
Eriflex
nVent ERIFLEX BC80 BC Ribbed Steel Busbar Clamp, 3.15" Busbar Width
Eriflex
nVent ERIFLEX TD100125AL Four Pole Distribution Block, 100/125 A, 1 Line Side & 10 Load Side Connections
Eriflex
nVent ERIFLEX CPI35-150-12 Grounding and Bonding Braid, Stainless Steel, 69.07 kcmil, 5.906"
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TD160A?
- TD160A can be ordered from cballast.com as a Eriflex catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eriflex product?
- The manufacturer part number is TD160A.
- What is the HS code for TD160A?
- The customs tariff (HS) code for TD160A is 8536.90.
- Who manufactures TD160A?
- TD160A is a Eriflex product in the Electrical Components range.
- Is a datasheet available for TD160A?
- Yes — the TD160A datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TD160A?
- The minimum order quantity is 1.
- Is TD160A available?
- Yes — TD160A is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
