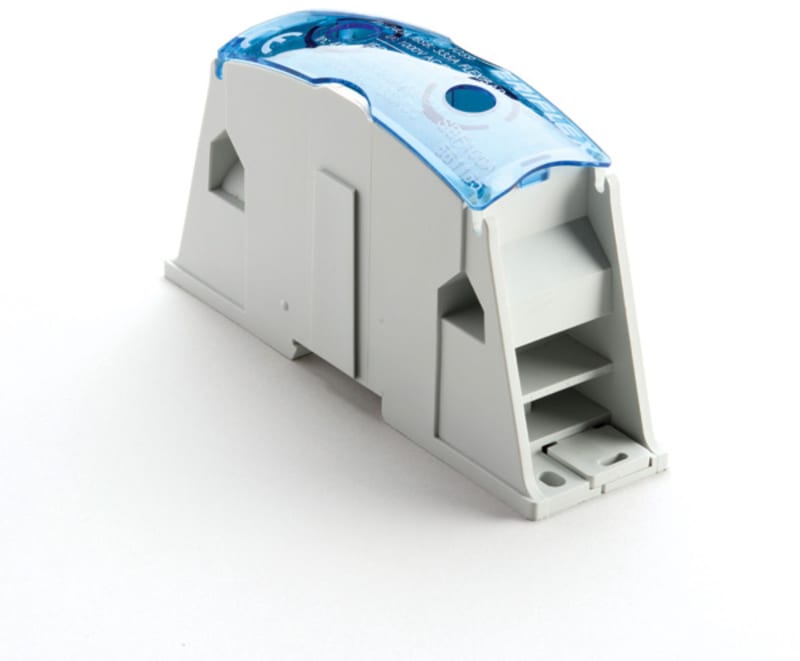

nVent ERIFLEX 561165 Splice Block, Flexibar-Cable, 335 A UL, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- 561165
- EAN / GTIN
- 8711893155419
- Sales unit
- pcs
- Finish
- Tinned
- Type
- Flexibar-Cable
- Typical Application Current Rating, IEC
- 400 A
- Typical Application Current Rating, UL
- 335 A
- Material
- Aluminum;Thermoplastic
- Line Side Max Conductor Size, IEC
- 100 mm²
- Line Side Max Conductor Size, UL
- 100 mm²
- Load Side Max Conductor Size, IEC
- 240 mm²
- Load Side Max Conductor Size, UL
- 400 kcmil
- Short Term Withstand Current (Icw) 1s
- 28.8kA
- Max Current Rating, Insulated Power Braid, IEC
- 450A
- Max Current Rating, Insulated Power Braid, UL/CSA
- 240A
- Max Current Rating, nVent ERIFLEX Flexibar, IEC
- 510A
- Max Current Rating, nVent ERIFLEX Flexibar, UL/CSA
- 335A
- Peak Short Circuit Current (Ipk)
- 51kA
- Rated Conditional Short-Circuit Current (Icc)
- 24.3kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Line Side Number of Connections
- 1
- Line Side Insulated Power Braid Cross Section
- 100mm²
- Line Side nVent ERIFLEX Flexibar Size
- 2x20x1 - 5x24x1
- Load Side Compact Stranded Wire Size
- 95 - 240 mm²
- Load Side Number of Connections
- 1
- Load Side Wire Size
- 3/0 – 400 kcmil
- Depth (D)
- 3.23" / 82mm
- Height (H)
- 5.76" / 146.4 mm
- Width (W)
- 1.63" / 41.5 mm
- Unit Weight
- 0.59 lb / 0.27 kg
- Certification Details
- UL® 1059
- Complies With
- IEC® 60947-7-1
- Enclosure Rating
- IP 20
- Flammability Rating
- UL® 94V-0
- UPC
- 782856912712
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 1
- Conductor cross section solid (solid, stranded)
- 95–240 mm²
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8711893155419
- SAP 1000767200
- Code 8560551
