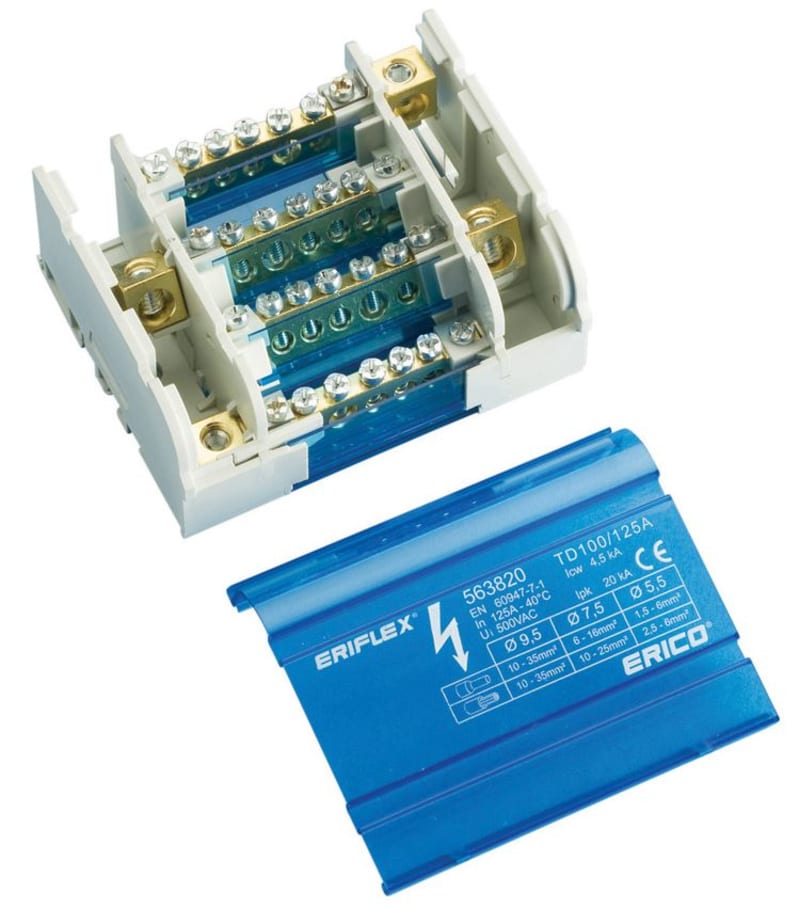

nVent ERIFLEX TD100125AL Four Pole Distribution Block, 100/125 A, 1 Line Side & 10 Load Side Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 4-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- TD100125AL EAN / GTIN: 3479775638300 Sales unit: pcs Article Number: 563830 material: Thermoplastic;Brass Max Current Rating, IEC: 125A Short Term Withstand Current (Icw) 1s: 4.5kA Peak Short Circuit Current (Ipk): 30kA Max Working Voltage, IEC (Ui): 690V Line Side Number of Connections: 1 Line Side Compact Stranded Wire Size: 10 - 35 mm² Line Side Stranded Wire Size - Ferrule: 10 - 35 mm² Load Side Number of Connections: 10 Load Side Compact Stranded Wire Size: (7) 2,5 - 6 mm²;(3) 10 - 25 mm² Load Side Stranded Wire Size - Ferrule: (7) 1,5 – 6 mm²;(3) 6 – 16 mm² Depth (D): 1.97" / 50mm Height (H): 3.54" / 90 mm Width (W): 5.79" / 147 mm Unit Weight: 0.97 lb / 0.44 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856878131 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 4 Conductor cross section solid (solid, stranded): 2.5–25 mm² Max. rated current: 125 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775638300
- SAP 1000264408
- Code 8227680
Product Documentation
