Overview

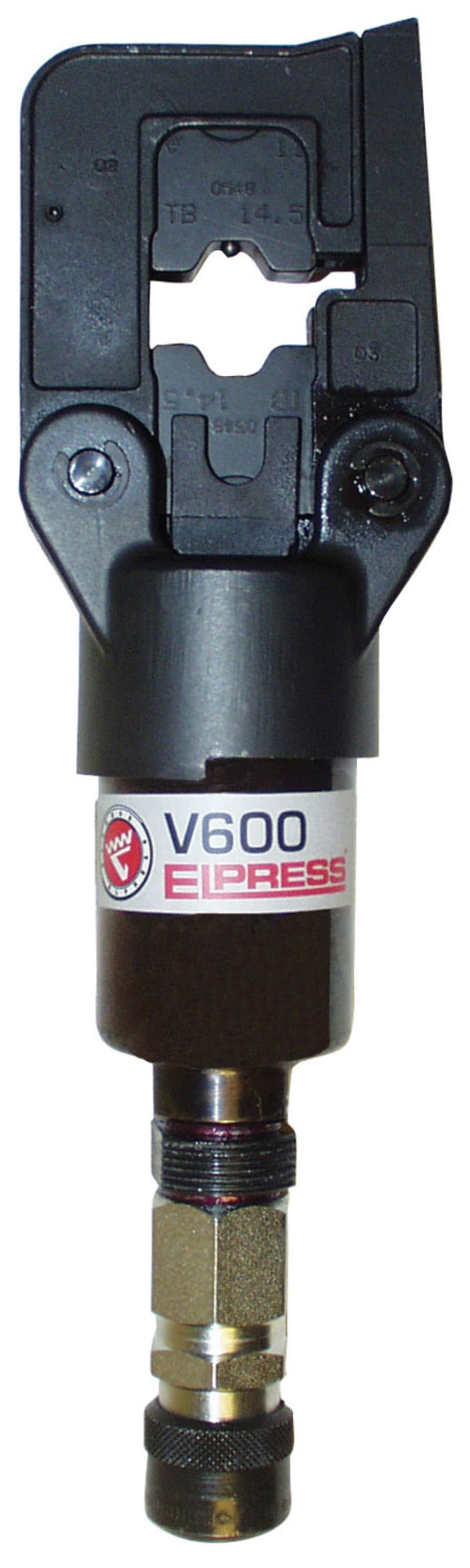

Elpress Hydrauliskt presshuvud 6 ton (part number V600) is listed under Tools / Crimping Tools. Sales unit: pcs; Type designation: V600; Crimp geometries: Punch, Hexagonal, Oval; Working pressure (MPa): 63; AWG/MCM Stranded Al: 6 - 4 AWG; AWG/MCM Solid Al: 6 - 2 AWG.
Technical Specifications
- Manufacturer part number (MPN)
- V600
- EAN / GTIN
- 7393487037342
- Sales unit
- pcs
- Article number
- 5208-060000
- Type designation
- V600
- Delivery box
- Textile bag
- Crimp geometries
- Punch, Hexagonal, Oval
- Working pressure (MPa)
- 63
- AWG/MCM Stranded Al
- 6 - 4 AWG
- AWG/MCM Solid Al
- 6 - 2 AWG
- AWG/MCM Cu
- 18 - 10 AWG
- mm² Stranded Al
- 16-25
- mm² Solid Al
- 16-35
- mm² Cu
- 10-240
- mm² KR/KS, KRF/KSF
- 10-150
- mm² KRT/KST
- 10-240
- mm² KRD/KSD
- 16-185
- Crimp range C-connectors min (mm²)
- 6/6
- Crimp range C-connectors max (mm²)
- 50/50
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 25
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Hydraulisc press head
- Compression shape
- Universal (exchangeable inserts)
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 150
- AWG-range, Min
- 8
- AWG-range, Max
- 300
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Compression force, Min (kN)
- 55
- Compression force, Max (kN)
- 55
- Length (mm)
- 189
- Pieces per pack
- 1
- Net weight (kg)
- 2.45
- Height Pack (mm)
- 60
- Depth Pack (mm)
- 330
- Width Pack (mm)
- 185
- With locking device (for mechanical tools)
- No
- Cross section
- 10–150 mm²
- AWG-range
- 7–500
- Compression force
- 55 kN
- Country of origin
- France
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487037342
- SAP 1000417207
- Code 826884
