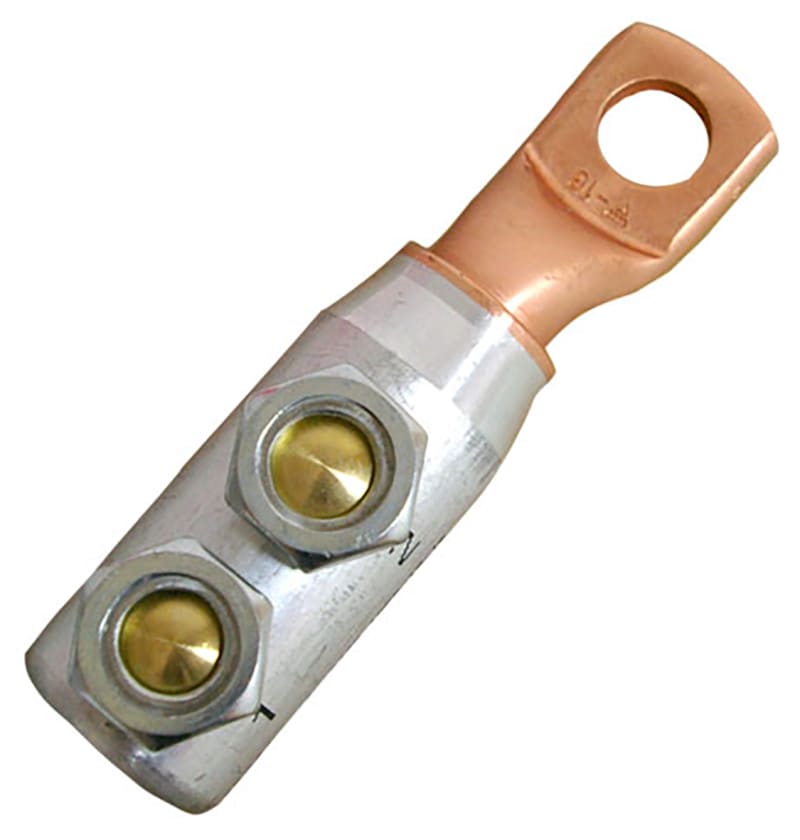

Elpress SL70R70S-10-12
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress SL70R70S-10-12 is listed in the cBallast industrial catalogue. Sales unit: pcs; Type designation: SL70R70S-10-12; a (mm): 12; W (mm): 25.5; N (mm): 12.5; d (mm): 11.
Technical Specifications
- Manufacturer part number (MPN)
- SL70R70S-10-12
- EAN / GTIN
- 7393487033795
- Sales unit
- pcs
- Article number
- 7334-012000
- Type designation
- SL70R70S-10-12
- a (mm)
- 12
- W (mm)
- 25.5
- N (mm)
- 12.5
- d (mm)
- 11
- L1 (mm)
- 59
- L (mm)
- 97
- t (mm) - palm thickness
- 5.5
- s (mm) - strip length
- 55
- Screw
- M10, M12
- Max voltage (kV)
- 1-36
- Screen conductor (mm²)
- 10-57
- Cable type Round (mm²)
- 10-70
- Cable type Sector (mm²)
- 25-70
- Bolt dimension metric (M)
- 10
- Nominal cross section copper, RM, Min (mm²)
- 10
- Nominal cross section copper, RM, Max (mm²)
- 70
- Nominal cross section copper, RE, Min (mm²)
- 25
- Nominal cross section copper, RE, Max (mm²)
- 70
- Nominal cross section copper, SM, Min (mm²)
- 25
- Nominal cross section copper, SM, Max (mm²)
- 70
- Nominal cross section aluminium, RM, Min (mm²)
- 10
- Nominal cross section aluminium, RM, Max (mm²)
- 70
- Nominal cross section aluminium, RE, Min (mm²)
- 10
- Nominal cross section aluminium, RE, Max (mm²)
- 70
- Nominal cross section aluminium, SM, Min (mm²)
- 25
- Nominal cross section aluminium, SM, Max (mm²)
- 70
- Nominal cross section aluminium, SE, Min (mm²)
- 25
- Nominal cross section aluminium, SE, Max (mm²)
- 70
- Pieces per pack
- 1
- Net weight (kg)
- 0.156
- Height Pack (mm)
- 22
- Depth Pack (mm)
- 170
- Width Pack (mm)
- 110
- Surface protection
- Bare
- With shear-off head
- No
- Bolt dimension (metric)
- 10
- Nominal cross section copper, RM
- 10–70 mm²
- Nominal cross section copper, RE
- 25–70 mm²
- Nominal cross section copper, SM
- 25–70 mm²
- Nominal cross section aluminium, RM
- 10–70 mm²
- Nominal cross section aluminium, RE
- 10–70 mm²
- Nominal cross section aluminium, SM
- 25–70 mm²
- Nominal cross section aluminium, SE
- 25–70 mm²
- Material conductor
- Aluminium
- Min. AWG-size
- 8
- Max. AWG-size
- 00
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487033795
- SAP 1000083330
- Code 8862940
Product Documentation
