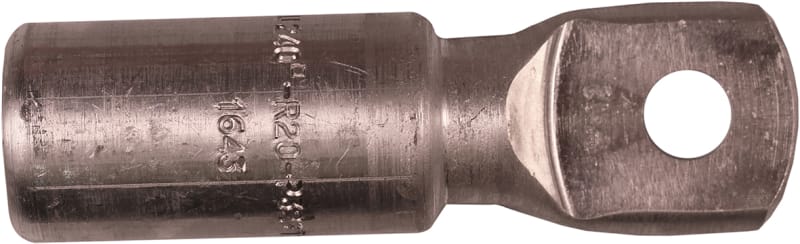

Elpress AK240-16 Aluminium Compression Cable Lug 240 mm² M16
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AK240-16 — compression (crimp) cable lug for terminating a 240 mm² aluminium conductor onto an M16 stud. Formed from solid aluminium (Al 99.7%) for connecting aluminium conductors to aluminium busbars and apparatus. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors. Requires two compression crimps per the Elpress crimp sequence; the connection is tested to IEC 61238-1 within the Elpress crimp system. Used in low-voltage power distribution, switchgear and cabinet terminations.
Technical Specifications
- Type
- Compression (crimp) aluminium cable lug
- Conductor cross-section
- 240 mm²
- Stud / bolt hole
- M16
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Crimp
- Two compression crimps (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AK240-16
- EAN / GTIN
- 7393487008915
- Sales unit
- pcs
- Package quantity
- 12 pcs
- HS code
- 8536.90
- Article number
- 7311-404000
- Type designation
- AK240-16
- W (mm)
- 35
- N (mm)
- 16
- N1 (mm)
- 18.5
- P (mm)
- 34.5
- d (mm)
- 19.8
- L (mm)
- 113
- t (mm) - palm thickness
- 13
- s (mm) - strip length
- 61
- Screw
- M16
- AWG/MCM Stranded Al
- 450 MCM
- mm² Stranded Al
- 240
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 16
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 240
- Pieces per pack
- 12
- Net weight (kg)
- 0.132
- Height Pack (mm)
- 85
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 145
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487008915
- SAP 1000025817
- Code 8500249
Product Documentation
More from Elpress
Elpress
Elpress Spadecoupling fully insulated, red (PA), 1,5mm², Width 7,4mm, Length 20,2mm, plug 4,8X0,5
A1505FLSF5
Elpress
A2510R-CP (7278-061603)
Elpress
Elpress AK95-10 Aluminium Compression Cable Lug 95 mm² M10
Elpress
Elpress A1,5-8ET2 Twin Insulated End Ferrule 2 × 1.5 mm² 8 mm
Elpress
Elpress A1532G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M3 (Red) 7278-270503
Elpress
Elpress AK50-12 Aluminium Compression Cable Lug 50 mm² M12
Elpress
Elpress KSF120M Copper Compression Through Connector 120 mm², Central Partition
Elpress
CUT10-CP (7303-020503)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AK240-16?
- AK240-16 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is AK240-16.
- What is the HS code for AK240-16?
- The customs tariff (HS) code for AK240-16 is 8536.90.
- Who manufactures AK240-16?
- AK240-16 is a Elpress product in the Electrical Components range.
- Is a datasheet available for AK240-16?
- Yes — the AK240-16 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AK240-16?
- The minimum order quantity is 1.
- Is AK240-16 available?
- Yes — AK240-16 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
