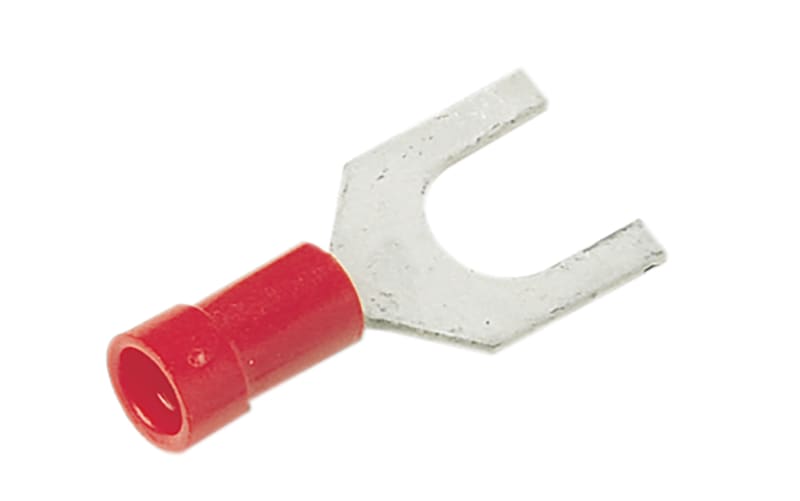

Elpress A1532G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M3 (Red) 7278-270503
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A1532G — insulated flanged fork (spade) terminal for a 0.5–1.5 mm² copper conductor, for an M3 screw stud (fork slot Ø 3.2 mm). Tinned 99.95% copper barrel with a brazed neck in a halogen-free polycarbonate easy-entry sleeve, colour-coded red for the conductor range. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Insulated flanged fork (spade) terminal
- Conductor cross-section
- 0.5–1.5 mm²
- Stud size
- M3 (fork slot Ø 3.2 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- Halogen-free polycarbonate (PC) easy-entry sleeve
- Insulation colour code
- Red
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- A (pre-insulated)
- Manufacturer part number (MPN)
- 7278-270503
- EAN / GTIN
- 7393487085411
- Sales unit
- pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487085411
- SAP 1200842760
- Code 84039128
Product Documentation
More from Elpress
Elpress
Elpress AK50-12 Aluminium Compression Cable Lug 50 mm² M12
Elpress
Elpress KSF120M Copper Compression Through Connector 120 mm², Central Partition
Elpress
CUT10-CP (7303-020503)
Elpress
Elpress KSF95M Copper Compression Through Connector 95 mm², Central Partition
Elpress
Elpress A0,75-12ET Insulated End Ferrule 0.75 mm² 12 mm
Elpress
Elpress KRF25-8-CP Copper Tube Cable Lug 25 mm² M8
Krf25-8-Cp
Elpress

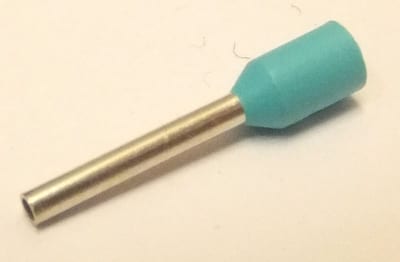

Elpress A0,34-8ET Insulated End Ferrule 0.34 mm² 8 mm
