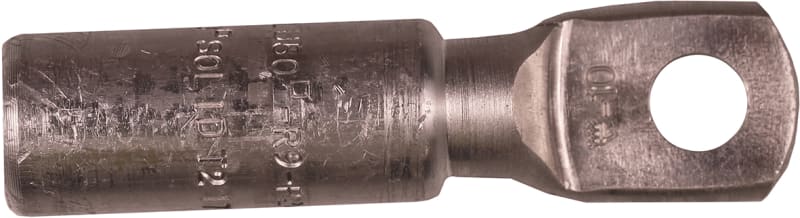

Elpress AK50-10 Aluminium Compression Cable Lug 50 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AK50-10 — compression (crimp) cable lug for terminating a 50 mm² aluminium conductor onto an M10 stud. Formed from solid aluminium (Al 99.7%) for connecting aluminium conductors to aluminium busbars and apparatus. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors. Requires two compression crimps per the Elpress crimp sequence; the connection is tested to IEC 61238-1 within the Elpress crimp system. Used in low-voltage power distribution, switchgear and cabinet terminations.
Technical Specifications
- Type
- Compression (crimp) aluminium cable lug
- Conductor cross-section
- 50 mm²
- Stud / bolt hole
- M10
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Crimp
- Two compression crimps (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AK50-10
- EAN / GTIN
- 7393487008779
- Sales unit
- pcs
- Package quantity
- 24 pcs
- HS code
- 8536.90
- Article number
- 7311-401400
- Type designation
- AK50-10
- W (mm)
- 22
- N (mm)
- 11
- N1 (mm)
- 14
- P (mm)
- 25
- d (mm)
- 9.6
- L (mm)
- 85
- t (mm) - palm thickness
- 7.5
- s (mm) - strip length
- 45
- Screw
- M10
- AWG/MCM Stranded Al
- 1/0 AWG
- AWG/MCM Solid Al
- 2/0 AWG
- mm² Stranded Al
- 50
- mm² Solid Al
- 70
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 10
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, SE, Min (mm²)
- 70
- Nominal cross section aluminium, SE, Max (mm²)
- 70
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 50
- Pieces per pack
- 24
- Net weight (kg)
- 0.045
- Height Pack (mm)
- 85
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 145
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487008779
- SAP 1000073675
- Code 8792362
Product Documentation
