Elpress SC95R95S Reversible Shearbolt Connector 50-95 mm² 1 kV
Pricing
Request a quote
We reply within 24 hours
Product Description

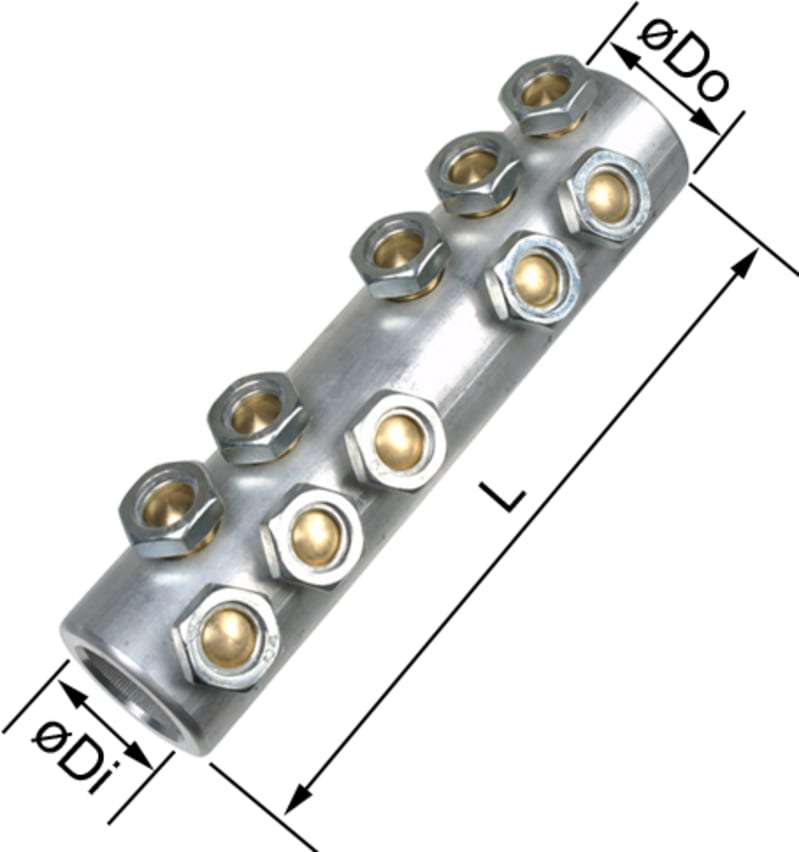

Elpress SC95R95S is a reversible shearbolt cable connector for aluminium and copper conductors from 50-95 mm² on 1-36 kV networks. The 114 mm long connector accepts round and sector-shaped RM, RE, SM and SE conductors and shears off during installation to a controlled torque, removing the need for a hydraulic press. Applications include underground and switchgear terminations where compact, tool-light jointing is preferred.
Technical Specifications
- Manufacturer part number (MPN)
- SC95R95S
- EAN / GTIN
- 7393487037847
- Sales unit
- pcs
- Article number
- 7320-011100
- Type designation
- SC95R95S
- d (mm)
- 16
- L (mm)
- 114
- s (mm) - strip length
- 58
- Max voltage (kV)
- 1-36
- Screen conductor (mm²)
- 70-95
- Screen conductor (with filling piece), Min (mm²)
- 16-57 (SC95N/PEN)
- Screen conductor (with filling piece), Max (mm²)
- 16-57 (SC95N/PEN)
- Cable type Round (mm²)
- 50-95
- Cable type Sector (mm²)
- 50-95
- Nominal cross section copper, RM, Min (mm²)
- 50
- Nominal cross section copper, RM, Max (mm²)
- 95
- Nominal cross section copper, RE, Min (mm²)
- 50
- Nominal cross section copper, RE, Max (mm²)
- 95
- Nominal cross section copper, SM, Min (mm²)
- 50
- Nominal cross section copper, SM, Max (mm²)
- 95
- Nominal cross section aluminium, RM, Min (mm²)
- 50
- Nominal cross section aluminium, RM, Max (mm²)
- 95
- Nominal cross section aluminium, RE, Min (mm²)
- 50
- Nominal cross section aluminium, RE, Max (mm²)
- 95
- Nominal cross section aluminium, SM, Min (mm²)
- 50
- Nominal cross section aluminium, SM, Max (mm²)
- 95
- Nominal cross section aluminium, SE, Min (mm²)
- 50
- Nominal cross section aluminium, SE, Max (mm²)
- 95
- Pieces per pack
- 1
- Net weight (kg)
- 0.324
- Height Pack (mm)
- 1
- Depth Pack (mm)
- 1
- Width Pack (mm)
- 1
- With shear-off head
- No
- Nominal cross section copper, RM
- 50–95 mm²
- Nominal cross section copper, RE
- 50–95 mm²
- Nominal cross section copper, SM
- 50–95 mm²
- Nominal cross section aluminium, RM
- 50–95 mm²
- Nominal cross section aluminium, RE
- 50–95 mm²
- Nominal cross section aluminium, SM
- 50–95 mm²
- Nominal cross section aluminium, SE
- 50–95 mm²
- Material conductor
- Aluminium/copper
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487037847
- SAP 1000416746
- Code 824050
