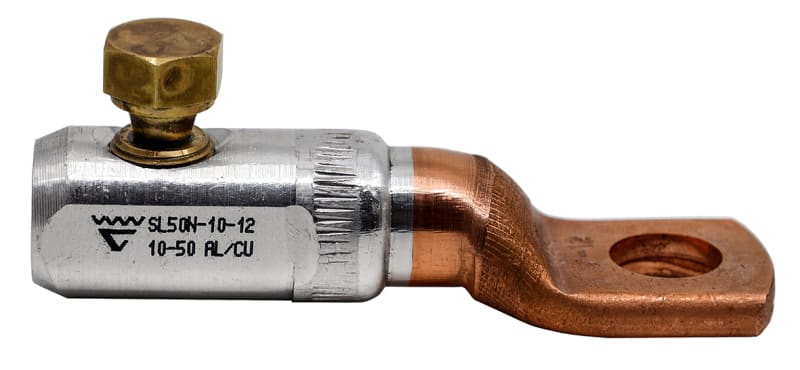

Elpress SL50N-10-12 Shearbolt Terminal, Pre-Assembled Screw
Part numberSL50N-10-12EAN / GTIN7393487087200HS code8536.90
Fasteners & Hardware
Screws & Bolts
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress SL50N-10-12 Al-Cu screw cable lug 10-50mm².
Technical Specifications
- Manufacturer part number (MPN)
- SL50N-10-12
- EAN / GTIN
- 7393487087200
- Sales unit
- pcs
- Article number
- 7334-017400
- Type designation
- SL50N-10-12
- a (mm)
- 13
- W (mm)
- 25.5
- N (mm)
- 12.5
- d (mm)
- 12
- L1 (mm)
- 44
- L (mm)
- 87
- t (mm) - palm thickness
- 5.9
- s (mm) - strip length
- 32
- Screw
- M10, M12
- Max voltage (kV)
- 1
- Screen conductor (mm²)
- 10-35
- Cable type Round (mm²)
- 10-50
- Cable type Sector (mm²)
- 10-50
- With shear-off head
- Yes
- Bolt dimension metric (M)
- 12.1
- Nominal cross section copper, RM, Min (mm²)
- 10
- Nominal cross section copper, RM, Max (mm²)
- 50
- Nominal cross section aluminium, RM, Min (mm²)
- 10
- Nominal cross section aluminium, RM, Max (mm²)
- 50
- Pieces per pack
- 1
- Net weight (kg)
- 0.094
- Height Pack (mm)
- 33
- Depth Pack (mm)
- 220
- Width Pack (mm)
- 130
- Surface protection
- Bare
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 10–50 mm²
- Nominal cross section copper, RE
- 10–50 mm²
- Nominal cross section copper, SM
- 10–50 mm²
- Nominal cross section aluminium, RM
- 10–50 mm²
- Nominal cross section aluminium, RE
- 10–50 mm²
- Nominal cross section aluminium, SM
- 10–50 mm²
- Nominal cross section aluminium, SE
- 10–50 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 8
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487087200
- SAP 1200584490
- Code 82961369
Product Documentation
Document preview: Elpress SL50N-10-12 Shearbolt Terminal, Pre-Assembled Screw — Specification sheet
More from Elpress
Elpress
Elpress B1,5-12ET Uninsulated End Terminal, 1.5 mm²
Elpress
Verktygsväska f. PVX1300
2000146
Elpress
KRFS120-12 (7301-291500)
Elpress
KRFS120-8 (7301-291300)
Elpress

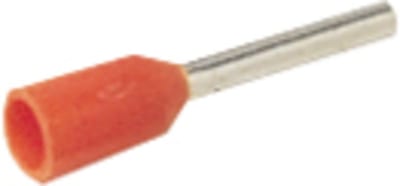

Elpress A0,5-8ET Insulated End Ferrule 0.5 mm² 8 mm
Elpress
Elpress Crimping die set (5303-103800)
Elpress

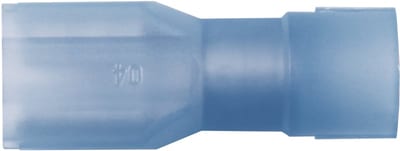

Elpress Spadecoupling fully insulated, blue (PA), 2,5mm², width 7,1mm, length 19,5mm, plug 4,8X0,5
A2505FLSF5
Elpress

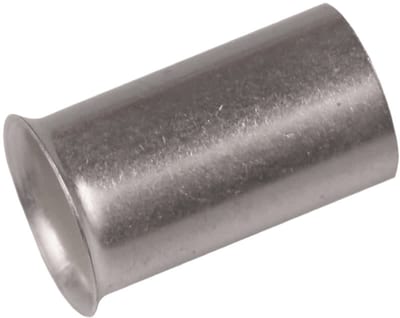

Elpress B16-18ET Uninsulated End Terminal, 16 mm²
