Product Description

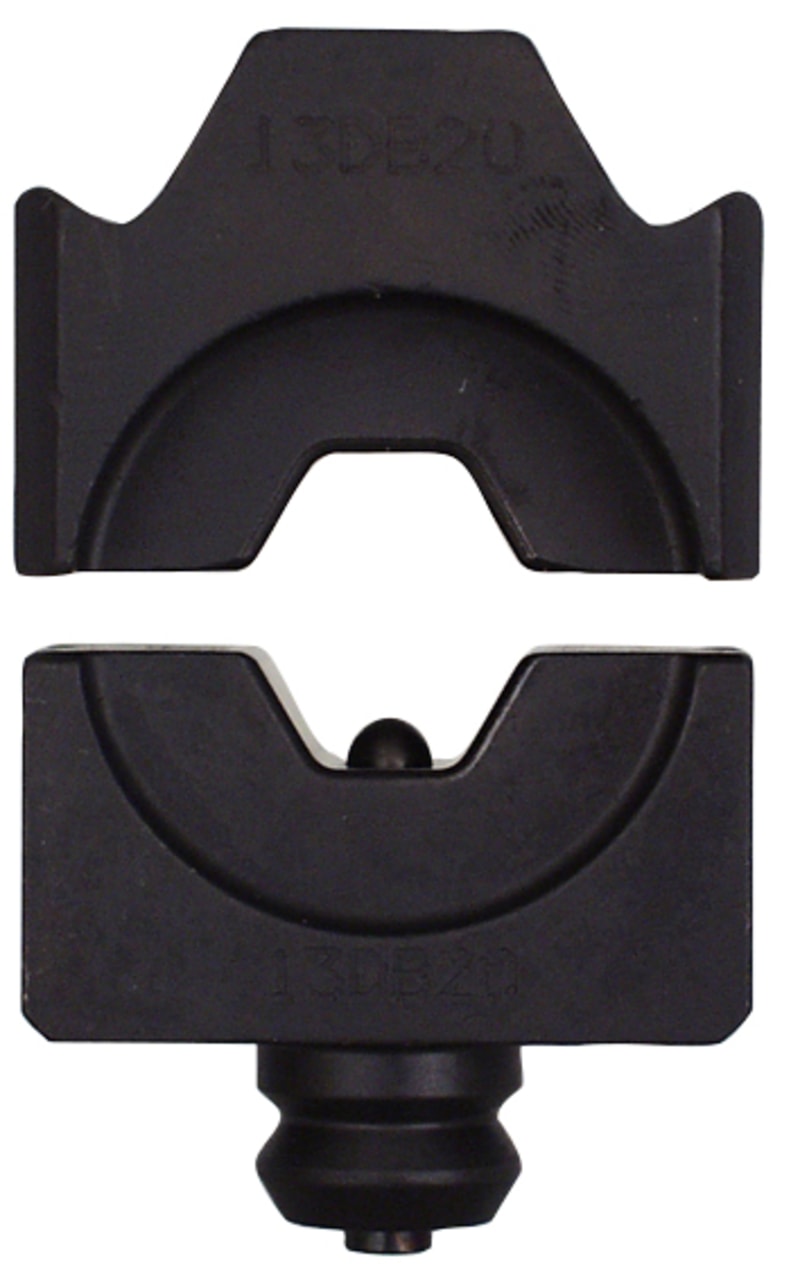

Elpress crimping die set. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5303-103800
- EAN / GTIN
- 7393487026216
- Sales unit
- pcs
- Article number
- 5303-103800
- Type designation
- 13DB17
- W (mm)
- 15.65
- L (mm)
- 15
- h1 (mm)
- 6.65
- Crimp geometries
- Dual
- Number of crimps
- 1
- mm² KR/KS, KRF/KSF
- 70
- Application
- Pipe cable lug and connectors
- Compression shape
- Hexagon
- Cross section, Min (mm²)
- 70
- Cross section, Max (mm²)
- 70
- Pieces per pack
- 1
- Net weight (kg)
- 0.486
- Height Pack (mm)
- 70
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 90
- Cross section
- 70 mm²
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487026216
- SAP 1200077782
- Code 81934606
Product Documentation
