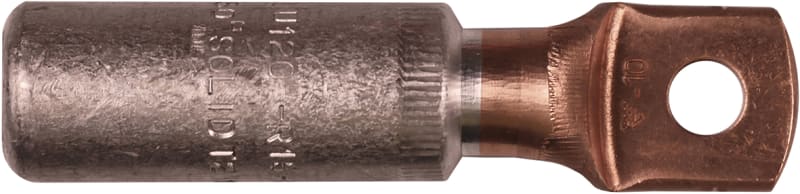

Elpress AKK120-10 Aluminium-Copper Bimetallic Compression Cable Lug 120 mm² M10

Elpress AKK120-10 — bimetallic (AlCu) compression cable lug for terminating a 120 mm² aluminium conductor onto an M10 copper stud connection. The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor can be connected directly to a copper busbar or apparatus without a separate bimetal washer. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors; two compression crimps are made on the aluminium barrel. Tested to IEC 61238-1 within the Elpress crimp system.

Type

AlCu bimetallic compression cable lug

Conductor cross-section

120 mm² (aluminium)

Stud / bolt hole

M10

Conductor class

Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium

Material

Friction-welded solid aluminium barrel + electrolytic copper palm

Connection

Aluminium conductor to copper busbar / apparatus

Crimp

Two compression crimps on the aluminium barrel

Crimp system

System Elpress, tested to IEC 61238-1

Manufacturer part number (MPN)

AKK120-10

EAN / GTIN

7393487009455

Sales unit

pcs

Package quantity

12 pcs

HS code

8536.90

Article number

7331-402600

Type designation

AKK120-10

W (mm)

25.5

N (mm)

12.5

N1 (mm)

12.5

P (mm)

25

d (mm)

14

L (mm)

108

t (mm) - palm thickness

5.7

s (mm) - strip length

60

Screw

M10

AWG/MCM Stranded Al

4/0 AWG

AWG/MCM Solid Al

300 MCM

mm² Stranded Al

120

mm² Solid Al

150

Number of mounting holes

1

Bolt dimension metric (M)

10

Cross section shape

Round/sector-shaped

Nominal cross section aluminium, SE, Min (mm²)

150

Nominal cross section aluminium, SE, Max (mm²)

150

Nominal cross section aluminium, RM/SM, Max (mm²)

120

Pieces per pack

12

Net weight (kg)

0.145

Height Pack (mm)

145

Depth Pack (mm)

180

Width Pack (mm)

87

HS Code

8536.90
