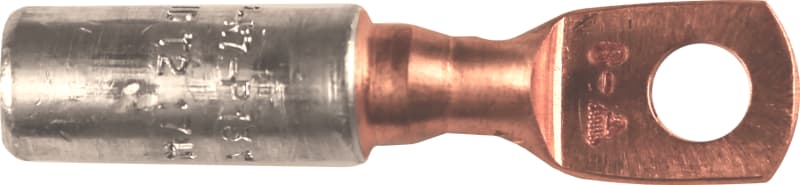

Elpress AKK25-8 Aluminium-Copper Bimetallic Compression Cable Lug 25 mm² M8
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKK25-8 — bimetallic (AlCu) compression cable lug for terminating a 25 mm² aluminium conductor onto an M8 copper stud connection. The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor can be connected directly to a copper busbar or apparatus without a separate bimetal washer. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors; two compression crimps are made on the aluminium barrel. Tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- AlCu bimetallic compression cable lug
- Conductor cross-section
- 25 mm² (aluminium)
- Stud / bolt hole
- M8
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Friction-welded solid aluminium barrel + electrolytic copper palm
- Connection
- Aluminium conductor to copper busbar / apparatus
- Crimp
- Two compression crimps on the aluminium barrel
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AKK25-8
- EAN / GTIN
- 7393487009325
- Sales unit
- pcs
- Package quantity
- 48 pcs
- HS code
- 8536.90
- Article number
- 7331-400700
- Type designation
- AKK25-8
- W (mm)
- 16
- N (mm)
- 8.5
- N1 (mm)
- 10
- P (mm)
- 18.5
- d (mm)
- 6.8
- L (mm)
- 66
- t (mm) - palm thickness
- 3
- s (mm) - strip length
- 29
- Screw
- M8
- AWG/MCM Stranded Al
- 4 AWG
- AWG/MCM Solid Al
- 2 AWG
- mm² Stranded Al
- 25
- mm² Solid Al
- 35
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 8
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, SE, Min (mm²)
- 35
- Nominal cross section aluminium, SE, Max (mm²)
- 35
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 25
- Pieces per pack
- 48
- Net weight (kg)
- 0.024
- Height Pack (mm)
- 87
- Depth Pack (mm)
- 141
- Width Pack (mm)
- 86
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009325
- SAP 1000087175
- Code 8888402
Product Documentation
