Elpress
KS2,5P (7303-521200)
Part number7303-521200EAN / GTIN7393487008199HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

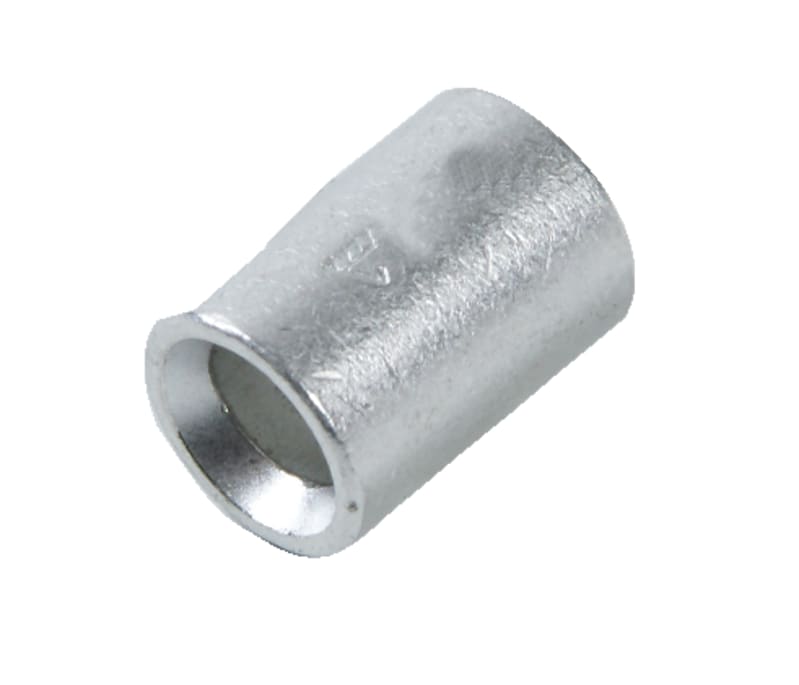

Elpress 7303-521200 SPLICE SLEEVE CU 1,5-2,5 mm².
Technical Specifications
- Manufacturer part number (MPN)
- 7303-521200
- EAN / GTIN
- 7393487008199
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7303-521200
- Type designation
- KS2,5P
- d (mm)
- 2.3
- L (mm)
- 7
- s (mm) - strip length
- 3
- AWG/MCM Cu
- 16 - 12 AWG
- mm² Cu
- 1,5-3,0
- Model
- Normal version
- Type of connection
- Cross connector
- Surface protection
- Tin plated
- Insulation
- EV000494
- Voltage level
- Up to 35 kV
- Material
- Copper
- AWG-range, Min
- 16
- AWG-range, Max
- 12
- Nominal cross section, Min (mm²)
- 1.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0004
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Country of origin
- Slovakia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487008199
- SAP 1200842725
- Code 84039057
Product Documentation
Document preview: KS2,5P (7303-521200) — Specification sheet
