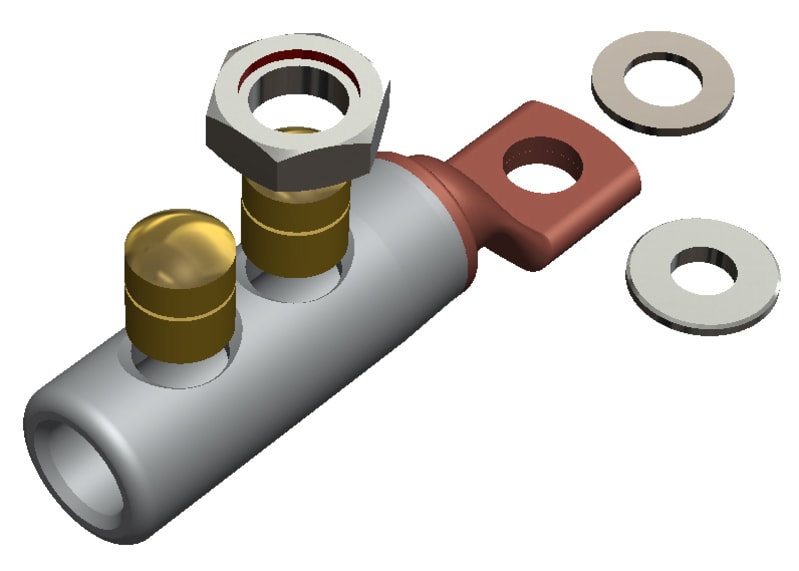

Elpress SL150R95S-10-12
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress SL150R95S-10-12 is listed in the cBallast industrial catalogue. Sales unit: pcs; Type designation: SL150R95S-10-12; a (mm): 12; W (mm): 26; N (mm): 12.5; d (mm): 16.
Technical Specifications
- Manufacturer part number (MPN)
- SL150R95S-10-12
- EAN / GTIN
- 7393487033801
- Sales unit
- pcs
- Article number
- 7334-012100
- Type designation
- SL150R95S-10-12
- a (mm)
- 12
- W (mm)
- 26
- N (mm)
- 12.5
- d (mm)
- 16
- L1 (mm)
- 75.5
- L (mm)
- 116
- t (mm) - palm thickness
- 6.2
- s (mm) - strip length
- 69
- Screw
- M10, M12
- Max voltage (kV)
- 1-36
- Screen conductor (mm²)
- 70-95
- Cable type Round (mm²)
- 95-150
- Cable type Sector (mm²)
- 95
- Surface protection
- Bright
- Bolt dimension metric (M)
- 12
- Nominal cross section copper, RM, Min (mm²)
- 150
- Nominal cross section copper, RM, Max (mm²)
- 150
- Nominal cross section copper, RE, Min (mm²)
- 150
- Nominal cross section copper, RE, Max (mm²)
- 150
- Nominal cross section copper, SM, Min (mm²)
- 95
- Nominal cross section copper, SM, Max (mm²)
- 95
- Nominal cross section aluminium, RM, Min (mm²)
- 150
- Nominal cross section aluminium, RM, Max (mm²)
- 150
- Nominal cross section aluminium, RE, Min (mm²)
- 150
- Nominal cross section aluminium, RE, Max (mm²)
- 150
- Nominal cross section aluminium, SM, Min (mm²)
- 95
- Nominal cross section aluminium, SM, Max (mm²)
- 95
- Nominal cross section aluminium, SE, Min (mm²)
- 95
- Nominal cross section aluminium, SE, Max (mm²)
- 95
- Pieces per pack
- 1
- Net weight (kg)
- 0.258
- Height Pack (mm)
- 28
- Depth Pack (mm)
- 170
- Width Pack (mm)
- 110
- With shear-off head
- No
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 150 mm²
- Nominal cross section copper, RE
- 150 mm²
- Nominal cross section copper, SM
- 95 mm²
- Nominal cross section aluminium, RM
- 150 mm²
- Nominal cross section aluminium, RE
- 150 mm²
- Nominal cross section aluminium, SM
- 95 mm²
- Nominal cross section aluminium, SE
- 95 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 300 kcmil
- Max. AWG-size
- 300 kcmil
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487033801
- SAP 1000048044
- Code 8530833
Product Documentation
