Overview

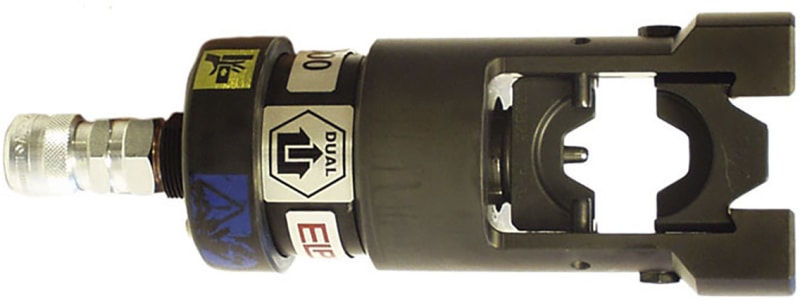

Elpress Crimphuvud DUAL (DV1300) is listed under Tools / Crimping Tools. Sales unit: pcs; Type designation: DV1300; Working temperature, Min (°C): -20; Working temperature, Max (°C): 40; Crimp geometries: Punch, Dual, Hexagonal, Oval; Working pressure (MPa): 63.
Technical Specifications
- Manufacturer part number (MPN)
- DV1300
- EAN / GTIN
- 7393487026285
- Sales unit
- pcs
- Article number
- 5208-133500
- Type designation
- DV1300
- Working temperature, Min (°C)
- -20
- Working temperature, Max (°C)
- 40
- Crimp geometries
- Punch, Dual, Hexagonal, Oval
- Working pressure (MPa)
- 63
- Quick connector
- Yes
- AWG/MCM Stranded Al
- 6 AWG - 700 MCM
- AWG/MCM Solid Al
- 6 AWG - 450 MCM
- AWG/MCM Cu
- 8 AWG - 700 MCM
- mm² Stranded Al
- 16-400
- mm² Solid Al
- 16-240
- mm² Cu
- 10-400
- Crimp range Cu-terminals min (mm²)
- 10
- Crimp range Cu-terminals max (mm²)
- 400
- Crimp range C-connectors min (mm²)
- 25
- Crimp range C-connectors max (mm²)
- 240
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 400
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Hydraulisc press head
- Compression shape
- Universal (exchangeable inserts)
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 400
- AWG-range, Min
- 8
- AWG-range, Max
- 700
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Compression force, Min (kN)
- 130
- Compression force, Max (kN)
- 130
- Length (mm)
- 265
- Pieces per pack
- 1
- Net weight (kg)
- 3.34
- Height Pack (mm)
- 330
- Depth Pack (mm)
- 100
- Width Pack (mm)
- 100
- With locking device (for mechanical tools)
- No
- Cross section
- 10–400 mm²
- Compression force
- 130 kN
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487026285
- SAP 1000798054
- Code 81436965
Product Documentation
More from Elpress
Elpress
Pressebakke (TBKA9-11,5)
Elpress
Elpress AKK25-12 Aluminium-Copper Bimetallic Compression Cable Lug 25 mm² M12
Elpress

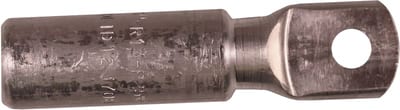

Elpress AK95-12 Aluminium Compression Cable Lug 95 mm² M12
