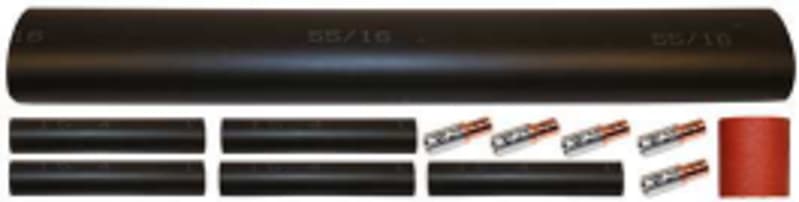

Elpress KHS-AKS1025-5 Crimp Connector with Heat-Shrink Insulation, 10-16 mm²
Part numberKHS-AKS1025-5EAN / GTIN7393487049222HS code8536.90
Cables & Wiring
Cable Joints
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KHS-AKS1025-5 Cable joint.
Technical Specifications
- Manufacturer part number (MPN)
- KHS-AKS1025-5
- EAN / GTIN
- 7393487049222
- Sales unit
- pcs
- Article number
- 7336-002400
- Type designation
- KHS-AKS1025-5
- Max voltage (kV)
- 1
- mm² Stranded Al
- 16-25
- mm² Cu
- 10-16
- Model
- Heat shrink
- Colour
- Black
- Halogen free
- Yes
- Suitable for
- Other
- Protective conductor
- Yes
- Pieces per pack
- 1
- Net weight (kg)
- 0.29
- Height Pack (mm)
- 45
- Depth Pack (mm)
- 550
- Width Pack (mm)
- 150
- Number of conductors
- 5
- Voltage level
- 0.6/1 kV
- Insulating material
- Plastic
- Mining sector approval
- No
- With concentric shielding
- Yes
- With protective conductor
- Yes
- Nominal cross section conductor
- 10–25 mm²
- For connection of paper- with plastic insulated cables
- Yes
- Connection accessories included
- Press-/crimp connector
- Rated voltage U0/U (Um)
- 0.6/1 (1.2) kV
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487049222
- SAP 1000679203
- Code 81194838
Product Documentation
Document preview: Elpress KHS-AKS1025-5 Crimp Connector with Heat-Shrink Insulation, 10-16 mm² — Specification sheet
