Elpress SC95N Shearbolt Connector 50-95 mm² Pre-Assembled Screw
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress SC95N shearbolt splice connector for cable joints, 50-95 mm² conductor range, with pre-assembled shear-off screws. Suitable for both copper and aluminium round and sector conductors up to 1 kV. 16.8 mm outside diameter, 69 mm length, 31 mm strip length.
Technical Specifications
- Manufacturer part number (MPN)
- SC95N
- EAN / GTIN
- 7393487049284
- Sales unit
- pcs
- Article number
- 7320-011500
- Type designation
- SC95N
- d (mm)
- 16.8
- L (mm)
- 69
- s (mm) - strip length
- 31
- Max voltage (kV)
- 1
- Screen conductor (mm²)
- 57-95
- Screen conductor (with filling piece), Min (mm²)
- 16-50 (SC95N/PEN)
- Screen conductor (with filling piece), Max (mm²)
- 16-50 (SC95N/PEN)
- Cable type Round (mm²)
- 35-95
- Cable type Sector (mm²)
- 50-95
- With shear-off head
- Yes
- Nominal cross section copper, RM, Min (mm²)
- 35
- Nominal cross section copper, RM, Max (mm²)
- 95
- Nominal cross section copper, RE, Min (mm²)
- 35
- Nominal cross section copper, RE, Max (mm²)
- 95
- Nominal cross section copper, SM, Min (mm²)
- 35
- Nominal cross section copper, SM, Max (mm²)
- 95
- Nominal cross section aluminium, RM, Min (mm²)
- 35
- Nominal cross section aluminium, RM, Max (mm²)
- 95
- Nominal cross section aluminium, RE, Min (mm²)
- 35
- Nominal cross section aluminium, RE, Max (mm²)
- 95
- Nominal cross section aluminium, SM, Min (mm²)
- 35
- Nominal cross section aluminium, SM, Max (mm²)
- 95
- Nominal cross section aluminium, SE, Min (mm²)
- 35
- Nominal cross section aluminium, SE, Max (mm²)
- 95
- Pieces per pack
- 1
- Net weight (kg)
- 0.12
- Height Pack (mm)
- 30
- Depth Pack (mm)
- 95
- Width Pack (mm)
- 85
- Material conductor
- Aluminium/copper
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487049284
- SAP 1000688149
- Code 8605448
Product Documentation
More from Elpress
Elpress

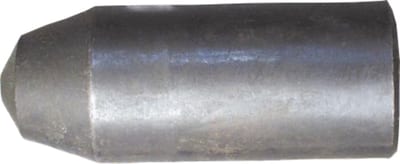

Elpress FS62C Impact Stud for Earthing Rod Driving 0-45 mm
Elpress
Elpress SL95N-10-12 Shearbolt Terminal, Pre-Assembled Screw
Elpress

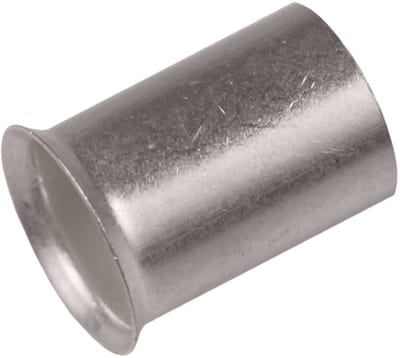

UNINSULATED.END Ferrule 25 mm²-15MM
B25-15ET
Elpress

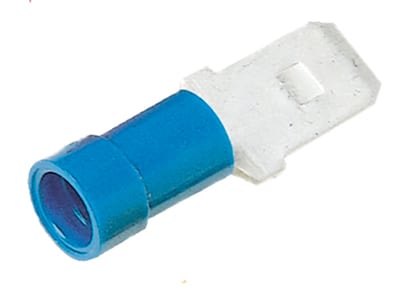

A2507H-CP (7458-341403)
Elpress

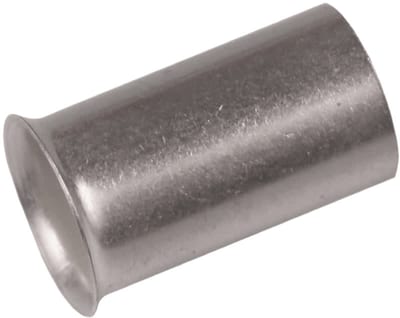

Elpress B16-12ET Uninsulated End Terminal, 16 mm²
Elpress
Elpress SC150N Shearbolt Connector, Pre-Assembled Screw
Elpress

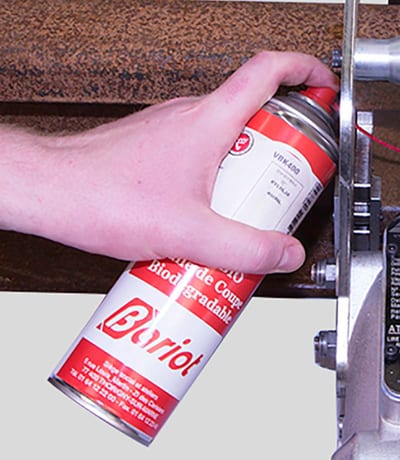

VBK400 (5225-001200)
Elpress

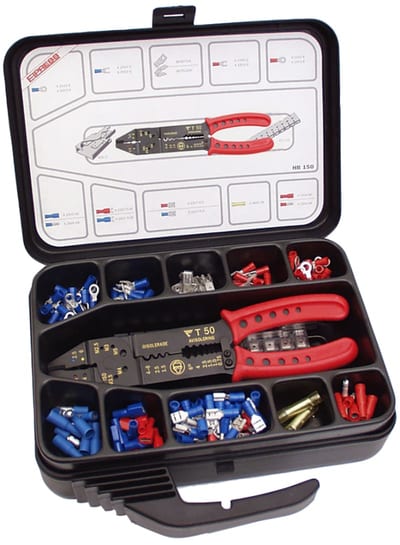

Elpress Sortimentskasse with 150 pcs, insulating end cable lug and couplingrfra 0,5-6,0mm² with pressetang
