Elpress

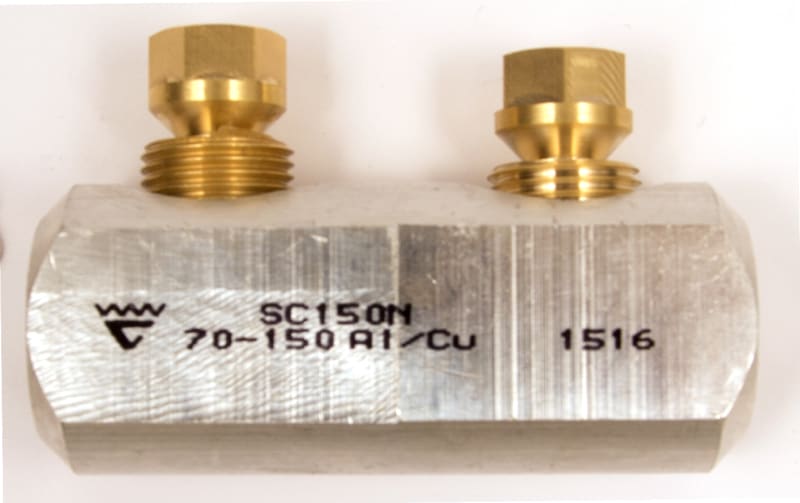

Elpress SC150N Shearbolt Connector, Pre-Assembled Screw
Part numberSC150NEAN / GTIN7393487049291HS code8536.90
Fasteners & Hardware
Screws & Bolts
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress SC150N Splice sleeve, screw 70-150mm².
Technical Specifications
- Manufacturer part number (MPN)
- SC150N
- EAN / GTIN
- 7393487049291
- Sales unit
- pcs
- Article number
- 7320-011400
- Type designation
- SC150N
- d (mm)
- 19.5
- L (mm)
- 80
- s (mm) - strip length
- 39
- Max voltage (kV)
- 1
- Screen conductor (mm²)
- 120-146
- Screen conductor (with filling piece), Min (mm²)
- 21-95 (SC150N/PEN)
- Screen conductor (with filling piece), Max (mm²)
- 21-95 (SC150N/PEN)
- Cable type Round (mm²)
- 70-150
- Cable type Sector (mm²)
- 70-150
- With shear-off head
- Yes
- Nominal cross section copper, RM, Min (mm²)
- 70
- Nominal cross section copper, RM, Max (mm²)
- 150
- Nominal cross section copper, RE, Min (mm²)
- 70
- Nominal cross section copper, RE, Max (mm²)
- 150
- Nominal cross section copper, SM, Min (mm²)
- 70
- Nominal cross section copper, SM, Max (mm²)
- 150
- Nominal cross section aluminium, RM, Min (mm²)
- 70
- Nominal cross section aluminium, RM, Max (mm²)
- 150
- Nominal cross section aluminium, RE, Min (mm²)
- 70
- Nominal cross section aluminium, RE, Max (mm²)
- 150
- Nominal cross section aluminium, SM, Min (mm²)
- 70
- Nominal cross section aluminium, SM, Max (mm²)
- 150
- Nominal cross section aluminium, SE, Min (mm²)
- 70
- Nominal cross section aluminium, SE, Max (mm²)
- 150
- Pieces per pack
- 1
- Net weight (kg)
- 0.18
- Height Pack (mm)
- 49
- Depth Pack (mm)
- 220
- Width Pack (mm)
- 130
- Nominal cross section copper, RM
- 70–150 mm²
- Nominal cross section copper, RE
- 70–150 mm²
- Nominal cross section copper, SM
- 70–150 mm²
- Nominal cross section aluminium, RM
- 70–150 mm²
- Nominal cross section aluminium, RE
- 70–150 mm²
- Nominal cross section aluminium, SM
- 70–150 mm²
- Nominal cross section aluminium, SE
- 70–150 mm²
- Material conductor
- Aluminium/copper
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487049291
- SAP 1000688150
- Code 878925
Product Documentation
Document preview: Elpress SC150N Shearbolt Connector, Pre-Assembled Screw — Specification sheet
More from Elpress
Elpress
VBK400 (5225-001200)
Elpress
Elpress Sortimentskasse with 150 pcs, insulating end cable lug and couplingrfra 0,5-6,0mm² with pressetang
HB150
Elpress
Elpress Crimping die set (2000012)
Elpress
Elpress B2,5-7ET Uninsulated End Terminal, 2.5 mm²
Elpress
Elpress Crimping die set (13DB27)
Elpress
Elpress B10-15ET Uninsulated End Terminal, 10 mm²
Elpress
Elpress Sortimentskasse with 350 pcs insulated cable lug and couplingr from 0,5-6,0mm² with pressetang T50
PL450
Elpress
Batteriladdare (2000025)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SC150N?
- SC150N can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is SC150N.
- What is the HS code for SC150N?
- The customs tariff (HS) code for SC150N is 8536.90.
- Who manufactures SC150N?
- SC150N is a Elpress product in the Fasteners & Hardware range.
- Is a datasheet available for SC150N?
- Yes — the SC150N datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SC150N?
- The minimum order quantity is 1.
- Is SC150N available?
- Yes — SC150N is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
