Elpress

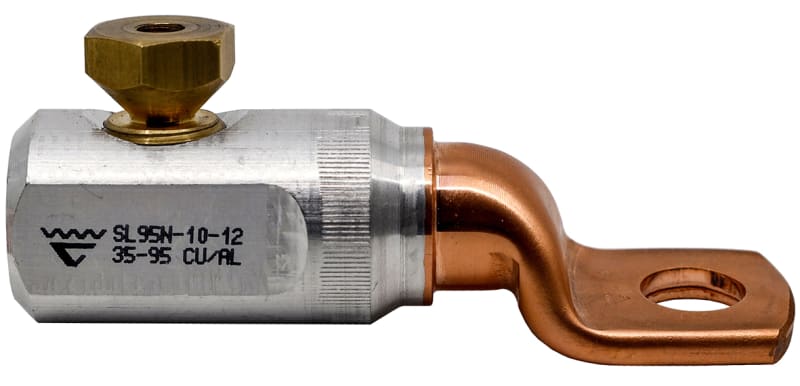

Elpress SL95N-10-12 Shearbolt Terminal, Pre-Assembled Screw
Part numberSL95N-10-12EAN / GTIN7393487087217HS code8536.90
Fasteners & Hardware
Screws & Bolts
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress SL95N-10-12 Al-Cu screw cable lug 35-95mm².
Technical Specifications
- Manufacturer part number (MPN)
- SL95N-10-12
- EAN / GTIN
- 7393487087217
- Sales unit
- pcs
- Article number
- 7334-017200
- Type designation
- SL95N-10-12
- a (mm)
- 13
- W (mm)
- 27.5
- N (mm)
- 12.5
- d (mm)
- 16
- L1 (mm)
- 52.5
- L (mm)
- 96
- t (mm) - palm thickness
- 4.7
- s (mm) - strip length
- 56
- Screw
- M12, M10
- Max voltage (kV)
- 1
- Screen conductor (mm²)
- 50-95
- Screen conductor, Min (mm²)
- 50
- Screen conductor, Max (mm²)
- 95
- Screen conductor (with filling piece), Min (mm²)
- 16-50 (SC95N/PEN)
- Screen conductor (with filling piece), Max (mm²)
- 16-50 (SC95N/PEN)
- Cable type Round (mm²)
- 35-95
- Cable type Sector (mm²)
- 35-95
- With shear-off head
- Yes
- Bolt dimension metric (M)
- 12.1
- Nominal cross section copper, RM, Min (mm²)
- 35
- Nominal cross section copper, RM, Max (mm²)
- 95
- Nominal cross section copper, RE, Min (mm²)
- 35
- Nominal cross section copper, SM, Min (mm²)
- 35
- Nominal cross section copper, SM, Max (mm²)
- 95
- Nominal cross section aluminium, RE, Max (mm²)
- 95
- Nominal cross section aluminium, SM, Max (mm²)
- 95
- Nominal cross section aluminium, SE, Min (mm²)
- 35
- Nominal cross section aluminium, SE, Max (mm²)
- 95
- Pieces per pack
- 1
- Net weight (kg)
- 0.14
- Height Pack (mm)
- 33
- Depth Pack (mm)
- 220
- Width Pack (mm)
- 130
- Surface protection
- Bare
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 35–95 mm²
- Nominal cross section copper, RE
- 35–95 mm²
- Nominal cross section copper, SM
- 35–95 mm²
- Nominal cross section aluminium, RM
- 35–95 mm²
- Nominal cross section aluminium, RE
- 35–95 mm²
- Nominal cross section aluminium, SM
- 35–95 mm²
- Nominal cross section aluminium, SE
- 35–95 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 2
- Max. AWG-size
- 0000
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487087217
- SAP 1200584491
- Code 82961370
Product Documentation
Document preview: Elpress SL95N-10-12 Shearbolt Terminal, Pre-Assembled Screw — Specification sheet
