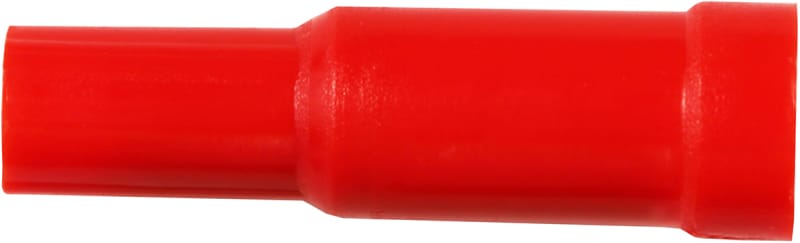

Round PIN HUNN 1,5 mm² RED
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress Round PIN HUNN 1,5 mm² RED (part number A1504HO) is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 100 pcs; Conductor cross-section: 1.5 mm²; Type designation: A1504HO; d (mm): 4.1; L (mm): 24.
Technical Specifications
- Manufacturer part number (MPN)
- A1504HO
- EAN / GTIN
- 7393487005228
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 1.5 mm²
- Article number
- 7495-256300
- Type designation
- A1504HO
- d (mm)
- 4.1
- L (mm)
- 24
- Insulation material
- PC
- Insulation colour
- Red (insulated terminals)
- Material
- Brass/Cu, Cu/Sn
- Easy-entry
- Yes
- For bullets ø (mm)
- 4
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 26 - 16 AWG
- mm² Cu
- 0,5-1,5
- s (mm) - strip length
- 7
- Model
- Sleeve
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Fully isolated
- Colour insulation
- Red
- Plug dimensions
- Round 4 mm
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Material insulation
- PC
- Pieces per pack
- 100
- Net weight (kg)
- 0.0012
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487005228
- SAP 1000040525
- Code 8747725
Product Documentation
