Product Description

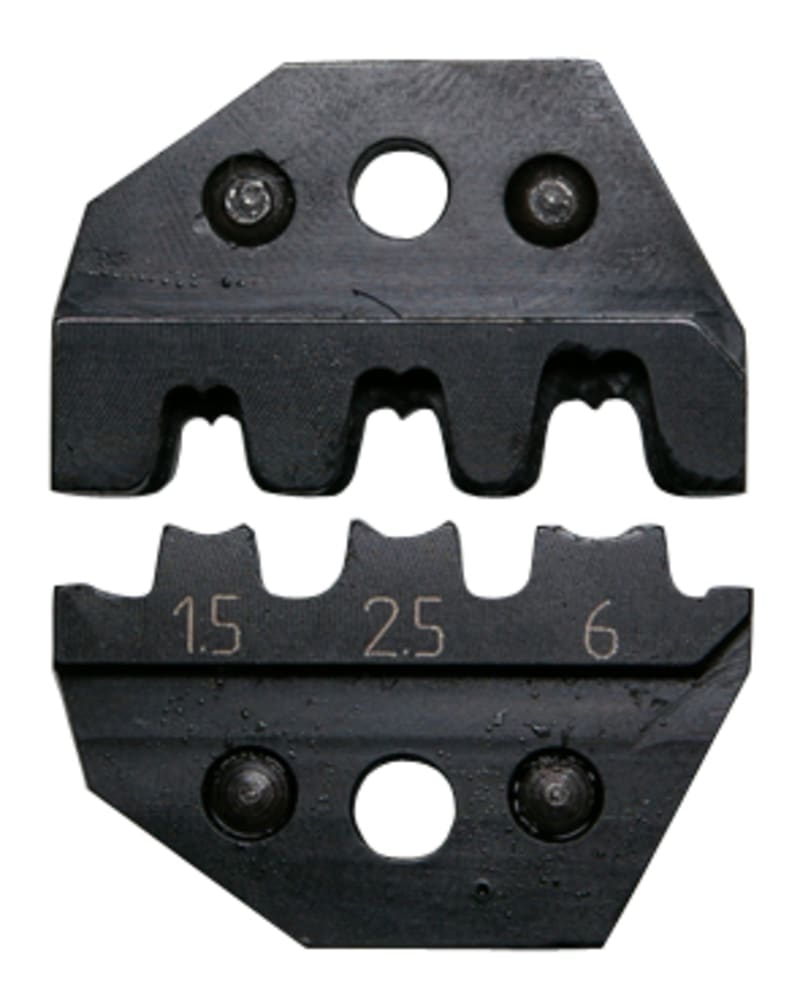

Elpress roll-crimp die jaw. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5112-509200
- EAN / GTIN
- 7393487028036
- Sales unit
- pcs
- Article number
- 5112-509200
- Type designation
- RB0560
- Crimp geometries
- Roll
- Application (connector type)
- Uninsulated terminals
- AWG/MCM Cu
- 1/0 - 2/0 AWG
- mm² Cu
- 0,5-6
- Application
- Not isolated cable connections
- Compression shape
- Roll compression (shrinking)
- Cross section, Min (mm²)
- 0.5
- Cross section, Max (mm²)
- 6
- AWG-range, Min
- 20
- AWG-range, Max
- 10
- Pieces per pack
- 1
- Net weight (kg)
- 0.05
- Height Pack (mm)
- 17
- Depth Pack (mm)
- 50
- Width Pack (mm)
- 34
- Cross section
- 0.5–6 mm²
- AWG-range
- 20–10
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487028036
- SAP 1000025471
- Code 8196303
Product Documentation
More from Elpress
Elpress

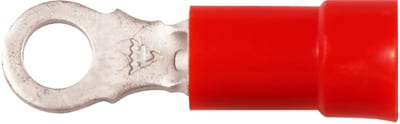

Elpress A1510R Ring Terminal, 0.5-1.5 mm²
Elpress

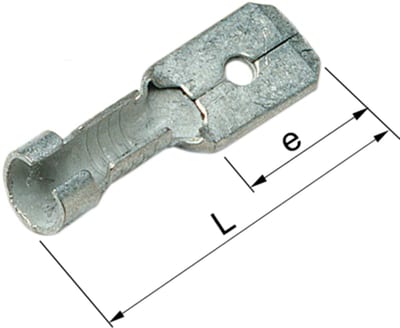

UNINSULATED.BLADE Receptacle B1507H
7157-500200
Elpress

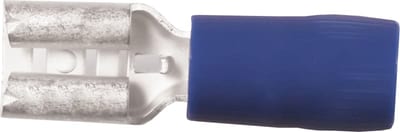

Elpress A2505FLS8 Receptacle, Rolled Type, 1.5-2.5 mm²
Elpress
VBG25 (5225-001100)
Elpress
Elpress AKK25-8 Aluminium-Copper Bimetallic Compression Cable Lug 25 mm² M8
Elpress

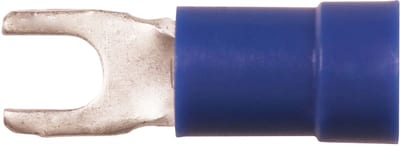

Elpress A2543G Insulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M4 (Blue)
Elpress

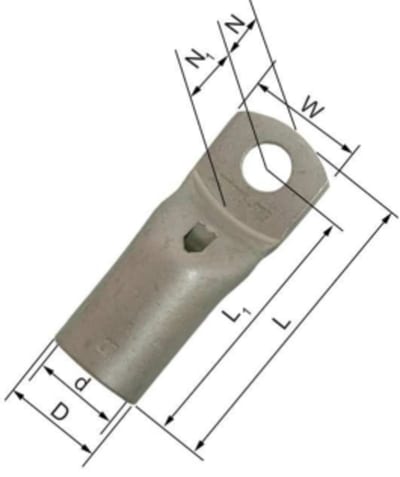

Elpress KRFN95-10 Copper Tube Cable Lug (Narrow Palm) 95 mm² M10
Elpress

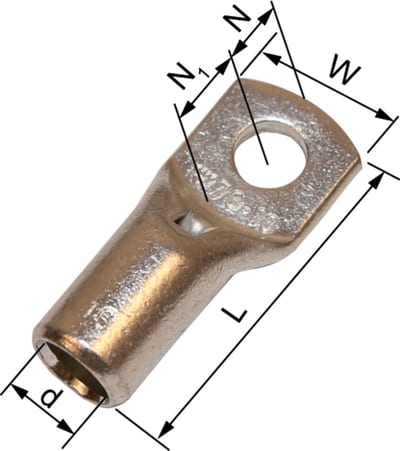

Elpress KRT35-12 Copper Tube Cable Lug 35 mm² M12
