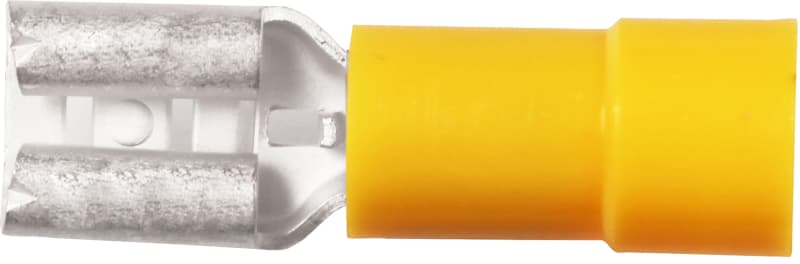

Elpress A4607FLS
Part numberA4607FLSEAN / GTIN7393487004979HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress A4607FLS is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 100 pcs; Type designation: A4607FLS; W (mm): 6.7; d (mm): 6.6; L (mm): 25.
Technical Specifications
- Manufacturer part number (MPN)
- A4607FLS
- EAN / GTIN
- 7393487004979
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7464-256000
- Type designation
- A4607FLS
- W (mm)
- 6.7
- d (mm)
- 6.6
- L (mm)
- 25
- s (mm) - strip length
- 9
- Insulation material
- PC
- Tab Size
- 6,3x0,8
- Insulation colour
- Yellow (insulated terminals)
- Material
- Brass/Cu, Cu/Sn
- Easy-entry
- Yes
- Tab
- 6,3x0,8
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 12 - 10 AWG
- mm² Cu
- 4-6
- Model
- Sleeve
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Colour insulation
- Yellow
- Plug dimensions
- Flat 6.3x0.8 mm
- AWG-range, Min
- 12
- AWG-range, Max
- 10
- Nominal cross section, Min (mm²)
- 4
- Nominal cross section, Max (mm²)
- 6
- Material insulation
- PC
- Pieces per pack
- 100
- Net weight (kg)
- 0.0018
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- AWG-range
- 10–12
- Nominal cross section
- 4–6 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004979
- SAP 1000082575
- Code 8829725
Product Documentation
