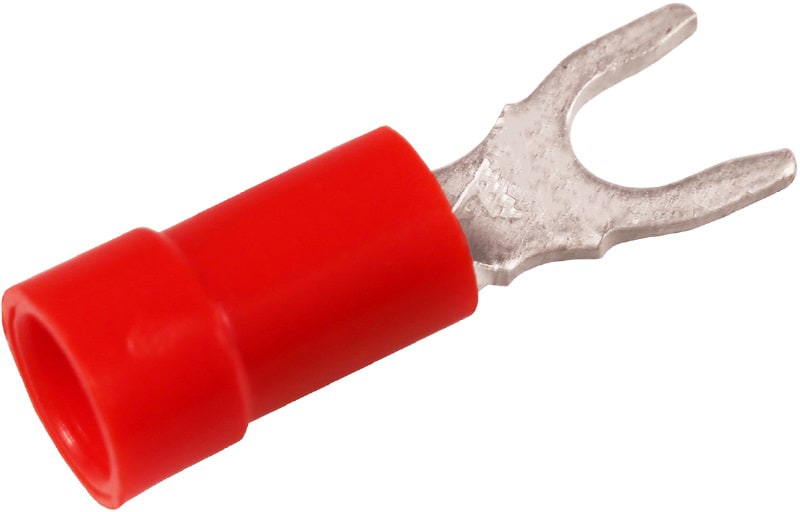

Elpress A1565G
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress A1565G is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 100 pcs; Type designation: A1565G; W (mm): 10.7; d (mm): 4.1; L (mm): 23.
Technical Specifications
- Manufacturer part number (MPN)
- A1565G
- EAN / GTIN
- 7393487004528
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7280-270900
- Type designation
- A1565G
- W (mm)
- 10.7
- d (mm)
- 4.1
- L (mm)
- 23
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 7
- Insulation material
- PC
- Insulation colour
- Red (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- Screw
- M6
- Neck type
- Brazed
- AWG/MCM Cu
- (22) - 18 AWG
- mm² Cu
- 0,5-1,5
- L1 (mm)
- 21
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Flange shape
- Fork shape
- Colour insulation
- Red
- Bolt dimension metric (M)
- 6
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Net weight (kg)
- 0.0008
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Pieces per pack
- 100
- Total length
- 26.5 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Bolt dimension (metric)
- 6
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- According to DIN
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004528
- SAP 1000042763
- Code 8774947
