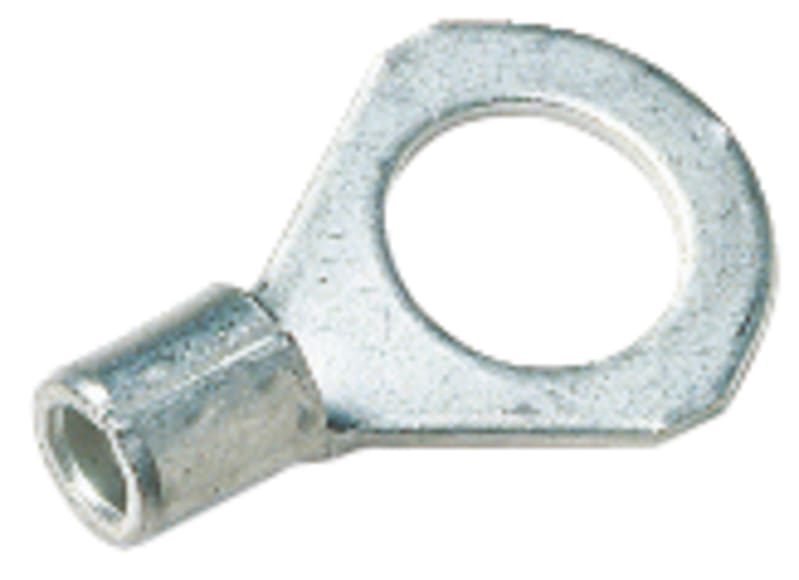

Elpress UNINSULATED RING TERMINAL 0,75-1,5 B1543R
Part numberB1543REAN / GTIN7393487003828HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B1543R UNINSULATED RING TERMINAL 0,75-1,5.
Technical Specifications
- Manufacturer part number (MPN)
- B1543R
- EAN / GTIN
- 7393487003828
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7259-260700
- Type designation
- B1543R
- W (mm)
- 8
- d (mm)
- 1.9
- L (mm)
- 15.8
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 7
- Material
- Cu, Cu/Sn
- Screw
- M4
- Neck type
- Brazed
- AWG/MCM Cu
- (22) - 18 AWG
- mm² Cu
- 0,5-1,5
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Not isolated
- Flange shape
- Ring shape
- Bolt dimension metric (M)
- 4
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0005
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Total length
- 16 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Bolt dimension (metric)
- 4
- Nominal cross section
- 0.75–1.5 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- According to DIN
- No
- Stud size (imperial)
- 4
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003828
- SAP 1000416512
- Code 8966758
Product Documentation
Document preview: Elpress UNINSULATED RING TERMINAL 0,75-1,5 B1543R — Specification sheet
