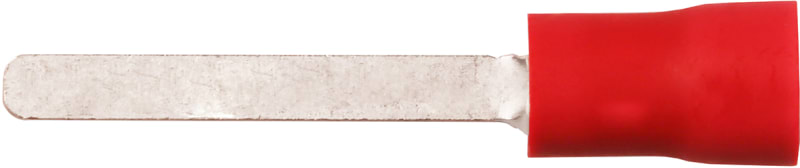

Elpress A1529SFN Blade Terminal, 0.5-1.5 mm²
Part numberA1529SFNEAN / GTIN7393487004238HS code8544.42
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A1529SFN Insulated planstiftkabelsko.
Technical Specifications
- Manufacturer part number (MPN)
- A1529SFN
- EAN / GTIN
- 7393487004238
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7280-153000
- Type designation
- A1529SFN
- W (mm)
- 2.8
- d (mm)
- 4.1
- L (mm)
- 25
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 7
- Insulation material
- PC
- Insulation colour
- Red (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- With tab
- Yes
- Neck type
- Brazed
- AWG/MCM Cu
- (22) - 18 AWG
- mm² Cu
- 0,5-1,5
- L1 (mm)
- 12
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Flange shape
- Pin shape
- Colour insulation
- Red
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Net weight (kg)
- 0.0007
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Pieces per pack
- 100
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7393487004238
- SAP 1000013192
- Code 8117147
Product Documentation
Document preview: Elpress A1529SFN Blade Terminal, 0.5-1.5 mm² — Specification sheet
