Elpress

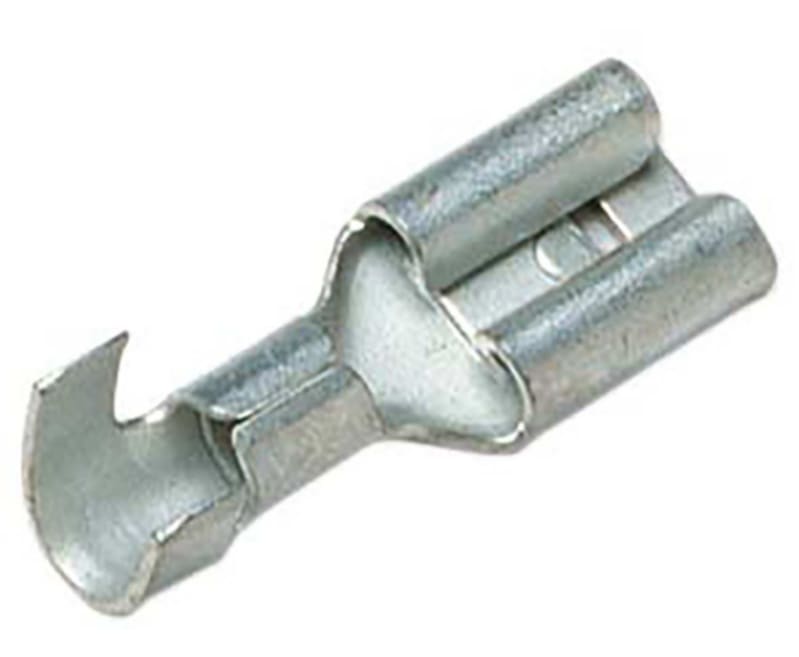

Elpress B2505FLS5 Receptacle, Rolled Type, 1.5-2.5 mm²
Part numberB2505FLS5EAN / GTIN7393487003538HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B2505FLS5 UNINSULATED.BLADE RECEPTACLE 1,5-2,5.
Technical Specifications
- Manufacturer part number (MPN)
- B2505FLS5
- EAN / GTIN
- 7393487003538
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7167-500500
- Type designation
- B2505FLS5
- e (mm)
- 6
- L (mm)
- 15.6
- t (mm) - palm thickness
- 0.35
- s (mm) - strip length
- 8
- Tab Size
- 4,8x0,5
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- Model
- Sleeve
- Insulation
- Not isolated
- Colour insulation
- Other
- Plug dimensions
- Flat 4.8x0.5 mm
- Material
- Brass
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Material insulation
- Other
- Pieces per pack
- 100
- Net weight (kg)
- 0.0005
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Surface protection
- Tinned
- Nominal cross section
- 1.5–2.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003538
- SAP 1000416546
- Code 8966835
Product Documentation
Document preview: Elpress B2505FLS5 Receptacle, Rolled Type, 1.5-2.5 mm² — Specification sheet
