Elpress Compression cable lug, KRF-series, 240 mm², M20 stud
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress compression (crimp) cable lug, KRF series, 240 mm² conductor cross-section, M20 bolt hole. Crimped tube-type ring terminal for copper/aluminium conductors; installed with a matched Elpress die and crimp force.
Technical Specifications
- Manufacturer part number (MPN)
- 7301-145900
- EAN / GTIN
- 7393487006270
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Conductor cross-section
- 240 mm²
- Thread size
- M20
- Article number
- 7301-145900
- Type designation
- KRF240A-20
- W (mm)
- 42
- N (mm)
- 19
- N1 (mm)
- 20
- P (mm)
- 39
- f (mm)
- 1
- d (mm)
- 22.5
- L (mm)
- 96
- t (mm) - palm thickness
- 6.4
- s (mm) - strip length
- 37
- Screw
- M20
- Inspection hole
- Yes
- AWG/MCM Cu
- 450 MCM
- mm² Cu
- 240
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Material
- Copper
- Bolt dimension metric (M)
- 20
- With sight-hole
- Yes
- AWG size
- Other
- Pieces per pack
- 10
- Net weight (kg)
- 0.204
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487006270
- SAP 1000052056
- Code 8817066
Product Documentation
More from Elpress
Elpress
Elpress Varmkrympskarv 1KV
KSC95N-1-4HS
Elpress

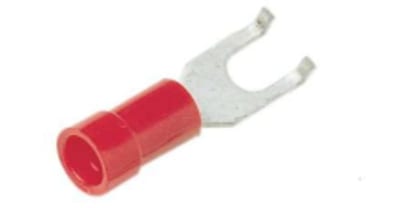

Elpress A1543GB Insulated Angled Fork (Spade) Terminal 0.5–1.5 mm² M4 (Red)
Elpress
Elpress KRT10-12 Copper Tube Cable Lug 10 mm² M12
Elpress

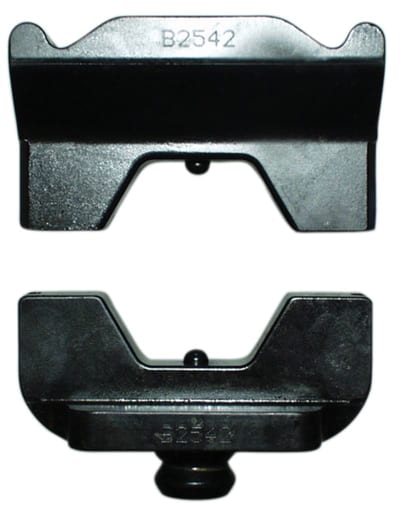

Integrer back f system V250
