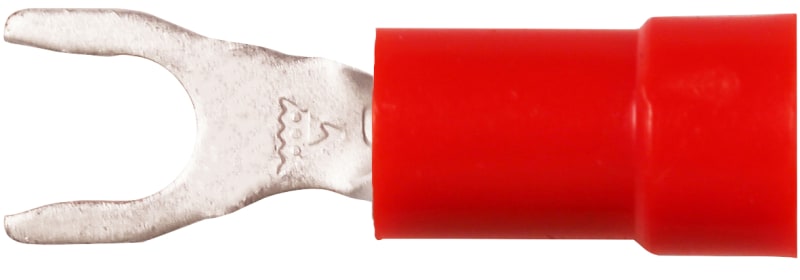

Elpress A1553G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M5 (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A1553G — insulated flanged fork (spade) terminal for a 0.5–1.5 mm² copper conductor, for an M5 screw stud (fork slot Ø 5.3 mm). Tinned 99.95% copper barrel with a brazed neck in a halogen-free polycarbonate easy-entry sleeve, colour-coded red for the conductor range. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Insulated flanged fork (spade) terminal
- Conductor cross-section
- 0.5–1.5 mm²
- Stud size
- M5 (fork slot Ø 5.3 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- Halogen-free polycarbonate (PC) easy-entry sleeve
- Insulation colour code
- Red
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- A (pre-insulated)
- Manufacturer part number (MPN)
- A1553G
- EAN / GTIN
- 7393487004511
- Sales unit
- pcs
- HS code
- 8536.90
- Article number
- 7278-270800
- Type designation
- A1553G
- W (mm)
- 9
- d (mm)
- 4
- L1 (mm)
- 18
- L (mm)
- 22.5
- t (mm) - palm thickness
- 0.7
- s (mm) - strip length
- 7
- Insulation material
- PC
- Insulation colour
- Red (insulated terminals)
- Easy-entry
- Yes
- Screw
- M5
- AWG/MCM Cu
- 20 - 16 AWG
- mm² Cu
- 0,5-1,5
- Halogen free
- Yes
- Surface protection
- Tin plated
- Flange shape
- Fork shape
- Bolt dimension metric (M)
- 5
- AWG-range, Min
- 20
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Pieces per pack
- 100
- Net weight (kg)
- 0.0007
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004511
- SAP 1000074347
- Code 8796885
Product Documentation
More from Elpress
Elpress
Elpress A1585R Ring Terminal, 0.5-1.5 mm²
Elpress
Elpress A1537R Ring Terminal, 0.5-1.5 mm²
Elpress
Elpress A0853R Ring Terminal, 0.25-0.75 mm²
Elpress
Elpress UNINSULATED RING TERMINAL 4-6 B4610R
Elpress
Elpress A4685G Insulated Flanged Fork (Spade) Terminal 4–6 mm² M8 (Yellow)
Elpress
A2507FLS-CP (7463-411903)
Elpress
Elpress A1532R Ring Terminal, 0.5-1.5 mm²
Elpress
KRFS240A-16 (7301-292700)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A1553G?
- A1553G can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is A1553G.
- What is the HS code for A1553G?
- The customs tariff (HS) code for A1553G is 8536.90.
- Who manufactures A1553G?
- A1553G is a Elpress product in the Electrical Components range.
- Is a datasheet available for A1553G?
- Yes — the A1553G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A1553G?
- The minimum order quantity is 1.
- Is A1553G available?
- Yes — A1553G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
