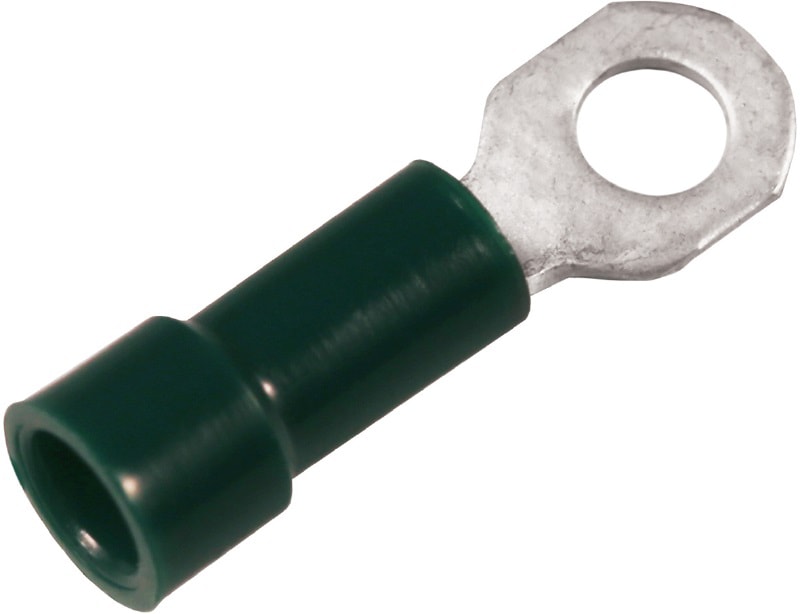

Elpress A0853R Ring Terminal, 0.25-0.75 mm²
Part numberA0853REAN / GTIN7393487004313HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A0853R Insulated ring terminal.
Technical Specifications
- Manufacturer part number (MPN)
- A0853R
- EAN / GTIN
- 7393487004313
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 0.25-0.75 mm²
- Article number
- 7278-260400
- Type designation
- A0853R
- W (mm)
- 9
- d (mm)
- 3.2
- L1 (mm)
- 17.5
- L (mm)
- 22
- t (mm) - palm thickness
- 0.5
- s (mm) - strip length
- 7
- Insulation material
- PC
- Insulation colour
- Green (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- Screw
- M5
- AWG/MCM Cu
- 24 - 18 AWG
- mm² Cu
- 0,25-0,75
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- EV002354
- Flange shape
- Ring shape
- Bolt dimension metric (M)
- 5
- AWG-range, Min
- 24
- AWG-range, Max
- 18
- Nominal cross section, Min (mm²)
- 0.25
- Nominal cross section, Max (mm²)
- 0.75
- Suitable for fine strand conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0005
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Total length
- 22 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Colour insulation
- Green
- Bolt dimension (metric)
- 5
- AWG-range
- 19–23
- Nominal cross section
- 0.25–0.75 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- No
- According to DIN
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004313
- SAP 1000054993
- Code 8842389
Product Documentation
Document preview: Elpress A0853R Ring Terminal, 0.25-0.75 mm² — Specification sheet
