Elpress A4685G Insulated Flanged Fork (Spade) Terminal 4–6 mm² M8 (Yellow)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A4685G — insulated flanged fork (spade) terminal for a 4–6 mm² copper conductor, for an M8 screw stud (fork slot Ø 8.5 mm). Tinned 99.95% copper barrel with a brazed neck in a halogen-free polycarbonate easy-entry sleeve, colour-coded yellow for the conductor range. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Insulated flanged fork (spade) terminal
- Conductor cross-section
- 4–6 mm²
- Stud size
- M8 (fork slot Ø 8.5 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- Halogen-free polycarbonate (PC) easy-entry sleeve
- Insulation colour code
- Yellow
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- A (pre-insulated)
- Manufacturer part number (MPN)
- A4685G
- EAN / GTIN
- 7393487004597
- Sales unit
- pcs
- HS code
- 8536.90
- Article number
- 7280-272400
- Type designation
- A4685G

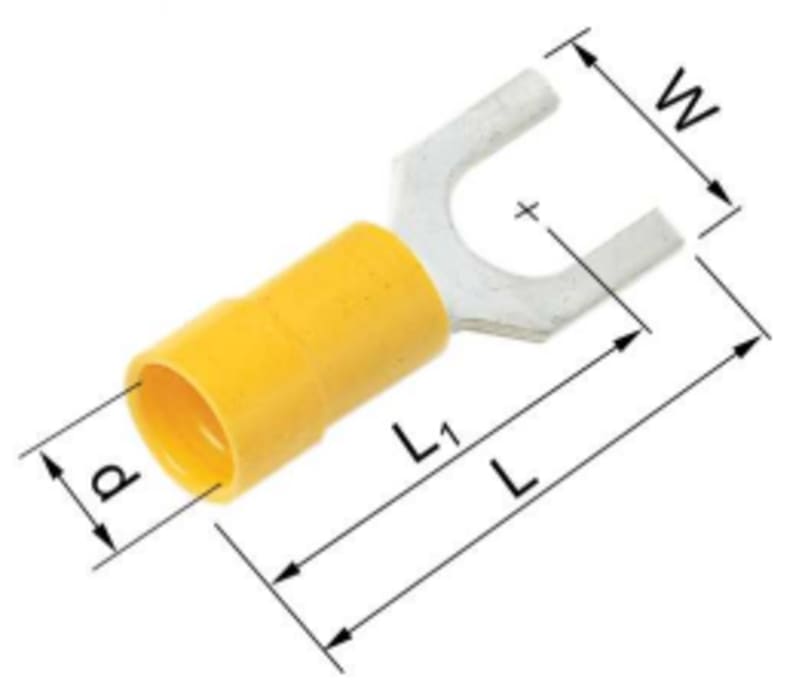

- W (mm)
- 13.5
- d (mm)
- 6.6
- L (mm)
- 32.5
- t (mm) - palm thickness
- 1
- s (mm) - strip length
- 9
- Insulation material
- PC
- Insulation colour
- Yellow (insulated terminals)
- Easy-entry
- Yes
- Screw
- M8
- Neck type
- Brazed
- AWG/MCM Cu
- 12 - 10 AWG
- mm² Cu
- 4-6
- L1 (mm)
- 23
- Halogen free
- Yes
- Surface protection
- Tin plated
- Flange shape
- Fork shape
- Colour insulation
- Yellow
- Bolt dimension metric (M)
- 8
- AWG-range, Min
- 12
- AWG-range, Max
- 10
- Nominal cross section, Min (mm²)
- 4
- Nominal cross section, Max (mm²)
- 6
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Net weight (kg)
- 0.0024
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- Pieces per pack
- 100
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004597
- SAP 1000416485
- Code 823572
