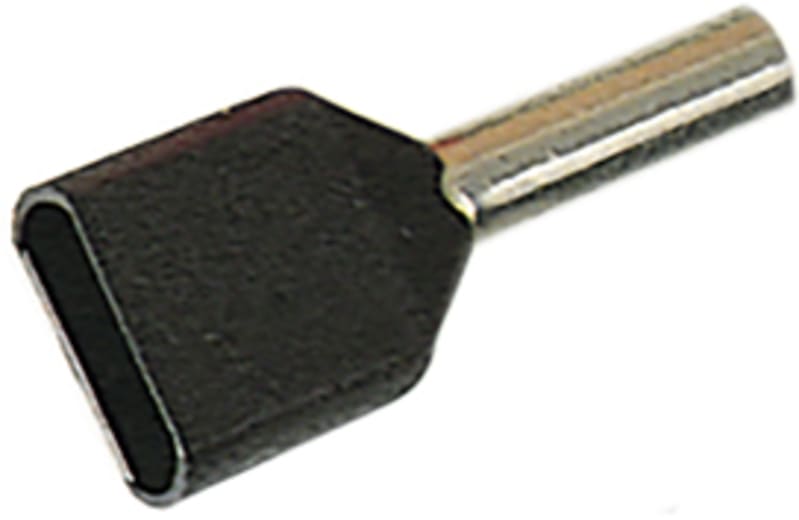

Elpress A1,5-12ET2 Twin Insulated End Ferrule 2 × 1.5 mm² 12 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A1,5-12ET2 — pre-insulated end ferrule (cord-end / bootlace terminal) for terminating two 1.5 mm² conductors (2 × 1.5 mm²) in a single 12 mm tinned-copper barrel and a polypropylene insulating collar. The barrel is electrolytic copper (Cu 99.95%) tin-plated (Cu/Sn); the neck is brazed and annealed so it can be crimped in any orientation. Insulation and dimensions conform to DIN 46228-4; halogen-free. Crimped with matching Elpress dies (System Elpress) for a gas-tight termination into terminal blocks, connectors and switchgear. Operating temperature −5 °C to +105 °C. Approvals: CSA, UL, CE, UKCA; REACH / RoHS compliant.
Technical Specifications
- Type
- Pre-insulated end ferrule (cord-end terminal), twin
- Conductor cross-section
- 2 × 1.5 mm²
- Insulated barrel length
- 12 mm
- Barrel material
- Electrolytic copper Cu 99.95%, tin-plated (Cu/Sn)
- Insulation
- Polypropylene (PP), halogen-free
- Standard
- DIN 46228-4
- Operating temperature
- −5 °C to +105 °C
- Crimp system
- System Elpress; brazed and annealed neck (crimp in any direction)
- Approvals
- CSA, UL, CE, UKCA; REACH / RoHS
- Manufacturer part number (MPN)
- A1,5-12ET2
- EAN / GTIN
- 7393487013919
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
- Article number
- 7287-009900
- Type designation
- A1,5-12ET2
- H (mm)
- 3.5
- d (mm)
- 2.3
- L1 (mm)
- 12
- L (mm)
- 20
- s (mm) - strip length
- 14
- Working temperature, Min (°C)
- -5
- Working temperature, Max (°C)
- 105
- Insulation material
- PP
- Insulation colour
- Black (end sleeves)
- Material
- Cu, Cu/Sn
- AWG/MCM Cu
- 2x16 AWG
- mm² Cu
- 2 x 1,5
- Colour
- Black
- Sleeve length (mm)
- 12
- Insulated
- Yes
- Halogen free
- Yes
- Surface protection
- Tin plated
- Construction type
- Twin cable end sleev
- Material insulation
- PP (Polypropylene)
- AWG size
- Other
- Nominal cross section (mm²)
- 1.5
- Pieces per pack
- 100
- Net weight (kg)
- 0.0002
- Height Pack (mm)
- 85
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 145
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487013919
- MPN A1,5-12ET2
Product Documentation
More from Elpress
Elpress
Elpress AKK35-8 Aluminium-Copper Bimetallic Compression Cable Lug 35 mm² M8
Elpress
A1553R-CP (7278-260803)
Elpress
Elpress B0,5-8ET Uninsulated End Terminal, 0.5 mm²
Elpress
Elpress A4613R Ring Terminal, 4-6 mm²
Elpress
Elpress AK630A-1 Aluminium Compression Cable Lug 630 mm²
Elpress
Elpress B0,75-6ET Uninsulated End Terminal, 0.75 mm²
Elpress
Elpress KRF95-8 Copper Tube Cable Lug 95 mm² M8
Elpress

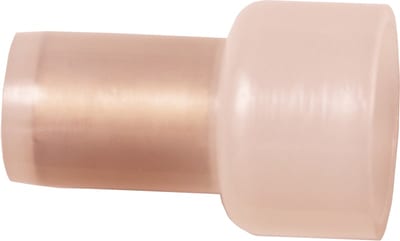

Elpress A4600E Fully Insulated End Connector Sleeve, 4-6 mm²
