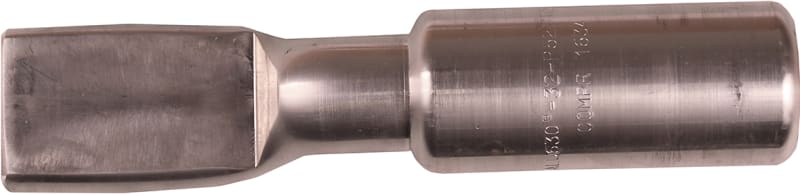

Elpress AK630A-1 Aluminium Compression Cable Lug 630 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AK630A-1 — compression (crimp) cable lug for terminating a 630 mm² aluminium conductor (bolt-hole variant -1). Formed from solid aluminium (Al 99.7%) for connecting aluminium conductors to aluminium busbars and apparatus. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors. Requires two compression crimps per the Elpress crimp sequence; the connection is tested to IEC 61238-1 within the Elpress crimp system. Used in low-voltage power distribution, switchgear and cabinet terminations.
Technical Specifications
- Type
- Compression (crimp) aluminium cable lug
- Conductor cross-section
- 630 mm²
- Bolt-hole configuration
- variant -1 (Elpress AK630A series)
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Crimp
- Two compression crimps (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AK630A-1
- EAN / GTIN
- 7393487019904
- Sales unit
- pcs
- Package quantity
- 3 pcs
- HS code
- 8536.90
- Article number
- 7312-004900
- Type designation
- AK630A-1
- W (mm)
- 55
- P (mm)
- 80
- d (mm)
- 32
- L (mm)
- 250
- t (mm) - palm thickness
- 20
- s (mm) - strip length
- 110
- AWG/MCM Stranded Al
- 1250 MCM
- mm² Stranded Al
- 630
- Cross section shape
- Round
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 630
- Pieces per pack
- 3
- Net weight (kg)
- 0.793
- Height Pack (mm)
- 55
- Depth Pack (mm)
- 260
- Width Pack (mm)
- 170
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487019904
- SAP 1000041494
- Code 8523476
Product Documentation
