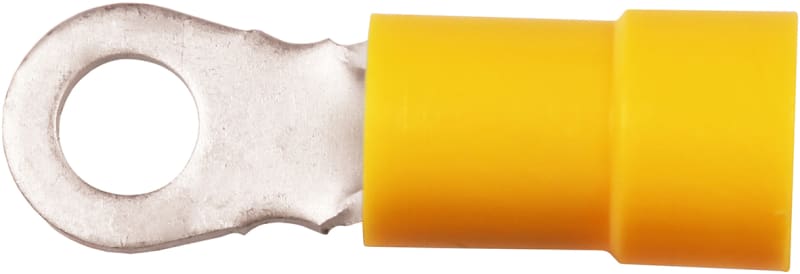

Elpress A4613R Ring Terminal, 4-6 mm²
Part numberA4613REAN / GTIN7393487004115HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A4613R Insulated ring terminal.
Technical Specifications
- Manufacturer part number (MPN)
- A4613R
- EAN / GTIN
- 7393487004115
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Conductor cross-section
- 4-6 mm²
- Article number
- 7276-502700
- Type designation
- A4613R
- W (mm)
- 19.2
- d (mm)
- 6.8
- L1 (mm)
- 31
- L (mm)
- 40
- t (mm) - palm thickness
- 1
- s (mm) - strip length
- 9
- Insulation material
- PC
- Insulation colour
- Yellow (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- Screw
- M12
- AWG/MCM Cu
- 12 - 10 AWG
- mm² Cu
- 4-6
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Flange shape
- Ring shape
- Bolt dimension metric (M)
- 12
- AWG-range, Min
- 12
- AWG-range, Max
- 10
- Nominal cross section, Min (mm²)
- 4
- Nominal cross section, Max (mm²)
- 6
- Pieces per pack
- 50
- Net weight (kg)
- 0.003
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- Total length
- 40 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Colour insulation
- Yellow
- Bolt dimension (metric)
- 12
- AWG-range
- 10–12
- Nominal cross section
- 4–6 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- According to DIN
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004115
- SAP 1000077972
- Code 8568993
Product Documentation
Document preview: Elpress A4613R Ring Terminal, 4-6 mm² — Specification sheet
More from Elpress
Elpress
Elpress AK630A-1 Aluminium Compression Cable Lug 630 mm²
Elpress
Elpress B0,75-6ET Uninsulated End Terminal, 0.75 mm²
Elpress
Elpress KRF95-8 Copper Tube Cable Lug 95 mm² M8
Elpress
Elpress A4600E Fully Insulated End Connector Sleeve, 4-6 mm²
Elpress

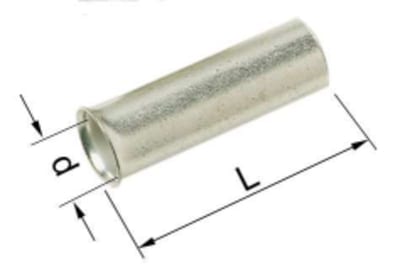

Elpress B1-12ET Uninsulated End Terminal, 1 mm²
Elpress
Elpress KHS-AS1625-4 Crimp Connector with Heat-Shrink Insulation
Elpress

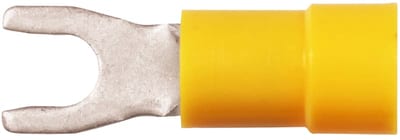

Elpress A4665G Insulated Flanged Fork (Spade) Terminal 4–6 mm² M6 (Yellow)
Elpress

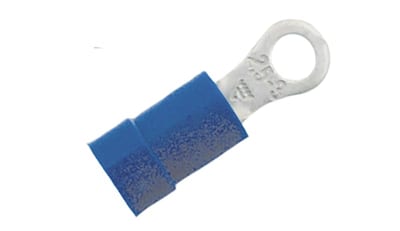

A2543R-CP (7278-261203)
