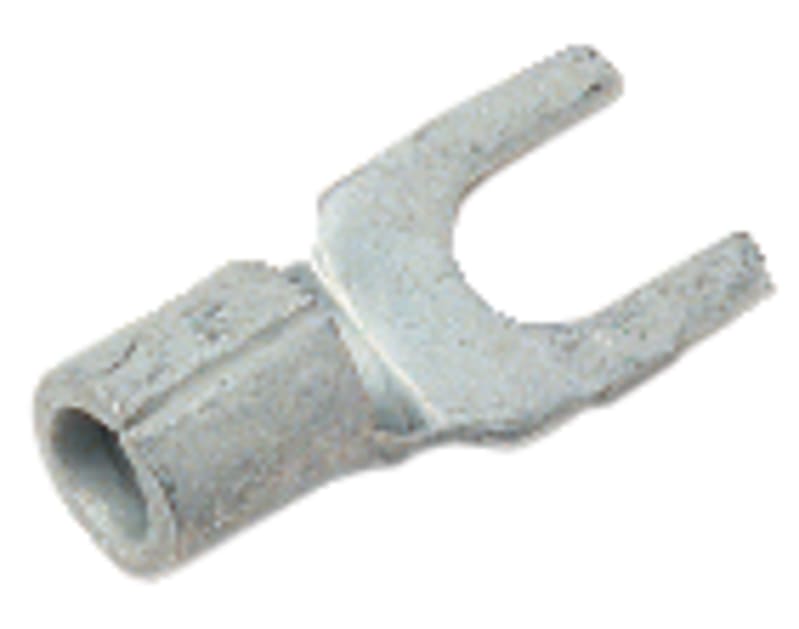

Elpress B4643G Uninsulated Flanged Fork (Spade) Terminal 4–6 mm² M4
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B4643G — uninsulated flanged fork (spade) terminal for a 4–6 mm² copper conductor, for an M4 screw stud (fork slot Ø 4.3 mm). Bare tinned 99.95% copper with a brazed neck. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Uninsulated flanged fork (spade) terminal
- Conductor cross-section
- 4–6 mm²
- Stud size
- M4 (fork slot Ø 4.3 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- None (bare)
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- B (uninsulated)
- Manufacturer part number (MPN)
- B4643G
- EAN / GTIN
- 7393487004009
- Sales unit
- pcs
- HS code
- 8536.90
- Article number
- 7259-272100
- Type designation
- B4643G
- W (mm)
- 8.2
- d (mm)
- 3.6
- L (mm)
- 19.5
- t (mm) - palm thickness
- 1
- s (mm) - strip length
- 9
- Screw
- M4
- Neck type
- Brazed
- AWG/MCM Cu
- 12 - 10 AWG
- mm² Cu
- 4-6
- Halogen free
- Yes
- Surface protection
- Tin plated
- Flange shape
- Fork shape
- Bolt dimension metric (M)
- 4
- AWG-range, Min
- 12
- AWG-range, Max
- 10
- Nominal cross section, Min (mm²)
- 4
- Nominal cross section, Max (mm²)
- 6
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0013
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004009
- SAP 1000416537
- Code 8498851
Product Documentation
More from Elpress
Elpress
Elpress KRF70-10-45GR Copper 45° Angled Tube Cable Lug 70 mm² M10
Elpress
Elpress KR10-6-90GR Copper 90° Angled Tube Cable Lug 10 mm² M6
Elpress
B1505FLS8-1 (7167-502800)
Elpress

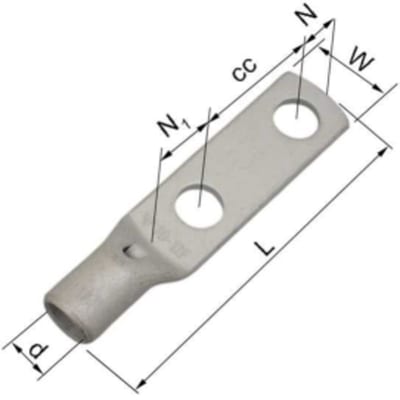

Elpress KRF70-12X2-40 Copper Two-Hole Tube Cable Lug 70 mm² M12
Elpress
Elpress KRF70-10-90GR Copper 90° Angled Tube Cable Lug 70 mm² M10
Elpress

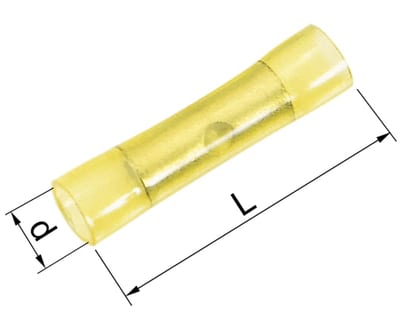

Elpress A4652SK-CP Duraseal Heat-Shrink Splice Sleeve
A4652sk-Cp
Elpress

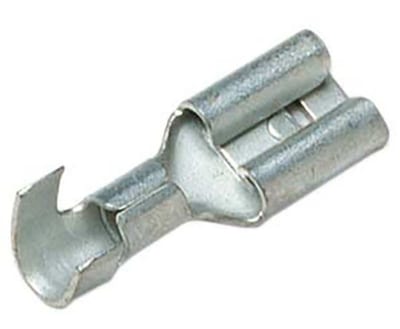

Elpress B1507FLS1 Receptacle, Rolled Type, 0.75-1.5 mm²
Elpress

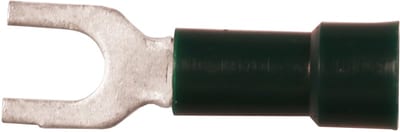

Elpress A0832G Insulated Flanged Fork (Spade) Terminal 0.25–0.75 mm² M3
