Elpress
B1505FLS8-1 (7167-502800)
Part number7167-502800EAN / GTIN7393487003484HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

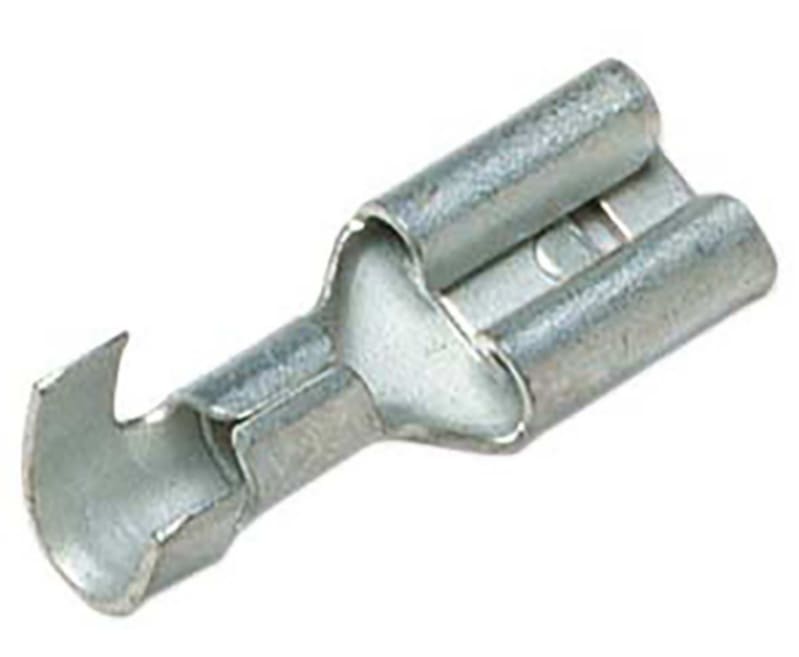

Elpress 7167-502800 UNINSULATED.BLADE RECEPTACLE 0,75-1,5.
Technical Specifications
- Manufacturer part number (MPN)
- 7167-502800
- EAN / GTIN
- 7393487003484
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7167-502800
- Type designation
- B1505FLS8-1
- e (mm)
- 6.4
- L (mm)
- 16
- t (mm) - palm thickness
- 0.4
- s (mm) - strip length
- 7
- Tab Size
- 4,8x0,8
- AWG/MCM Cu
- (18) - 16 AWG
- mm² Cu
- 0,75-1,5
- Model
- Sleeve
- Insulation
- Not isolated
- Colour insulation
- Other
- Plug dimensions
- Flat 4.8x0.8 mm
- Material
- Brass
- AWG-range, Min
- 18
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.75
- Nominal cross section, Max (mm²)
- 1.5
- Material insulation
- Other
- Pieces per pack
- 100
- Net weight (kg)
- 0.0004
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003484
- SAP 1200842737
- Code 84039073
Product Documentation
Document preview: B1505FLS8-1 (7167-502800) — Specification sheet
