Product Description
Elpress KRF70-10-45GR — compression (crimp) tube cable lug for terminating 70 mm² copper conductor onto an M10 stud. Barrel dimensioned for stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors, with a cable inspection hole for correct conductor insertion. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn). The palm is set at 45° to the barrel. Crimped with matching Elpress dies to produce a gas-tight, low-resistance connection tested to IEC 61238-1. Carries DNV type approval and UL listing (File E205350) within the tested Elpress crimp system. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) tube cable lug
- Conductor cross-section
- 70 mm²
- Stud / bolt hole
- M10
- Palm angle
- 45°
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- DNV type approval, UL File E205350
- Manufacturer part number (MPN)
- KRF70-10-45GR
- EAN / GTIN
- 7393487016224
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
- Article number
- 7301-127100
- Type designation
- KRF70-10-45GR

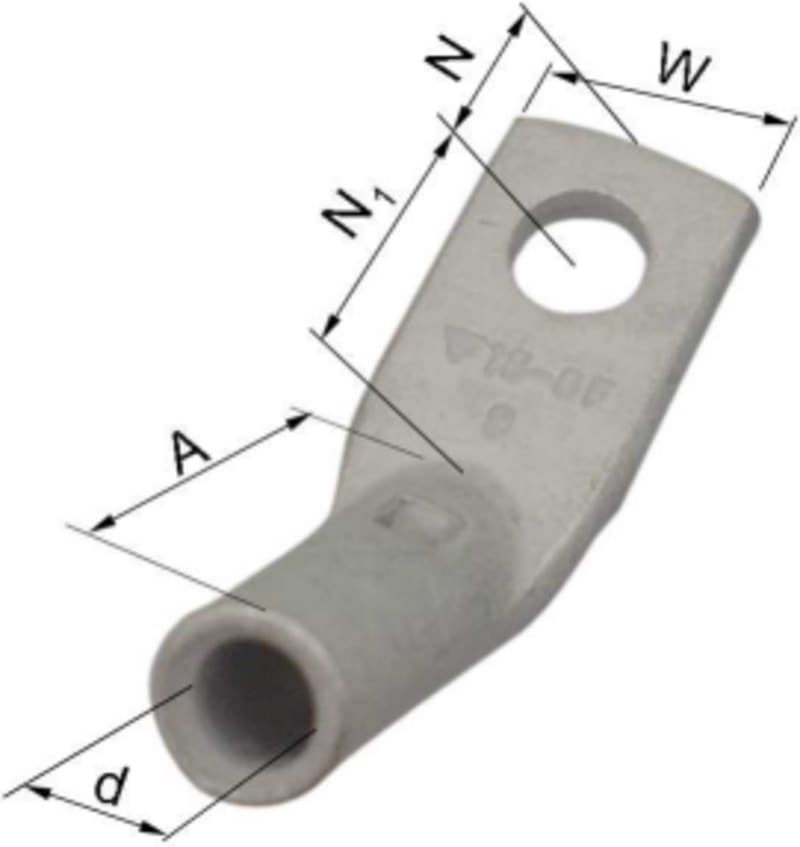

- A (mm)
- 35
- W (mm)
- 24
- N (mm)
- 11.5
- N1 (mm)
- 18.5
- P (mm)
- 30
- d (mm)
- 13
- t (mm) - palm thickness
- 3.9
- s (mm) - strip length
- 22
- Screw
- M10
- Angle (°)
- 45
- Inspection hole
- Yes
- AWG/MCM Cu
- 2/0 AWG
- mm² Cu
- 70
- Surface protection
- Tin plated
- Connecting angle
- 45°
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 10
- With sight-hole
- Yes
- AWG size
- 00
- Pieces per pack
- 50
- Net weight (kg)
- 0.053
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487016224
- SAP 1200855212
- Code 84072549
Product Documentation
More from Elpress
Elpress
Elpress KR10-6-90GR Copper 90° Angled Tube Cable Lug 10 mm² M6
Elpress
B1505FLS8-1 (7167-502800)
Elpress
Elpress KRF70-12X2-40 Copper Two-Hole Tube Cable Lug 70 mm² M12
Elpress
Elpress KRF70-10-90GR Copper 90° Angled Tube Cable Lug 70 mm² M10
Elpress
Elpress A4652SK-CP Duraseal Heat-Shrink Splice Sleeve
A4652sk-Cp
Elpress
Elpress B1507FLS1 Receptacle, Rolled Type, 0.75-1.5 mm²
Elpress
Elpress A0832G Insulated Flanged Fork (Spade) Terminal 0.25–0.75 mm² M3
Elpress
Elpress UNINSULATED RING TERMINAL 4-6 B4665R
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
