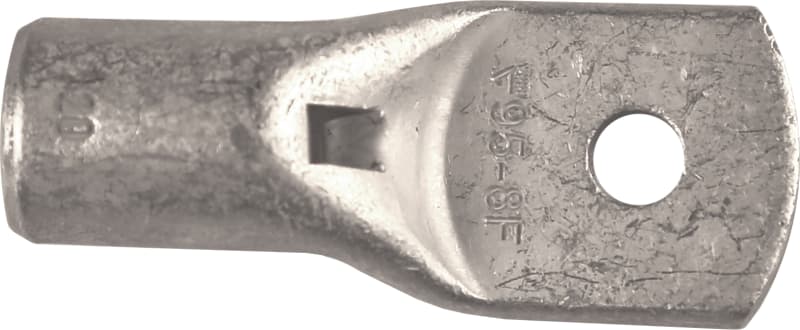

Elpress KRF95-16 Copper Tube Cable Lug 95 mm² M16
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KRF95-16 — compression (crimp) tube cable lug for terminating 95 mm² copper conductor onto an M16 stud. Barrel dimensioned for stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors, with a cable inspection hole for correct conductor insertion. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn). Crimped with matching Elpress dies to produce a gas-tight, low-resistance connection tested to IEC 61238-1. Carries DNV type approval and UL listing (File E205350) within the tested Elpress crimp system. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) tube cable lug
- Conductor cross-section
- 95 mm²
- Stud / bolt hole
- M16
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- DNV type approval, UL File E205350
- Manufacturer part number (MPN)
- KRF95-16
- EAN / GTIN
- 7393487006164
- Sales unit
- pack
- Package quantity
- 50 pack
- HS code
- 8536.90
- Article number
- 7301-014600
- Type designation
- KRF95-16
- W (mm)
- 29
- N (mm)
- 15
- N1 (mm)
- 16
- P (mm)
- 31
- f (mm)
- 1
- d (mm)
- 15
- L (mm)
- 69
- t (mm) - palm thickness
- 4.9
- s (mm) - strip length
- 25
- Screw
- M16
- Inspection hole
- Yes
- AWG/MCM Cu
- 3/0 AWG
- mm² Cu
- 95
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 16
- With sight-hole
- Yes
- AWG size
- 000
- Pieces per pack
- 50
- Net weight (kg)
- 0.073
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487006164
- SAP 1000043202
- Code 8525634
Product Documentation
More from Elpress
Elpress
Elpress KRF70-16 Copper Tube Cable Lug 70 mm² M16
Elpress
Elpress KSF400A Copper Compression Through Connector 400 mm²
Elpress
Elpress A0,75-6ET Insulated End Ferrule 0.75 mm² 6 mm
Elpress
Elpress Crimping tool, 4–16 mm²
ES2258
Elpress
Elpress AKK70-8 Aluminium-Copper Bimetallic Compression Cable Lug 70 mm² M8
Elpress
Elpress A2,5-18ET Insulated End Ferrule 2.5 mm² 18 mm
Elpress
SD0525 (7905-003500)
Elpress
Elpress A1,5-10ET Insulated End Ferrule 1.5 mm² 10 mm
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRF95-16?
- KRF95-16 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is KRF95-16.
- What is the HS code for KRF95-16?
- The customs tariff (HS) code for KRF95-16 is 8536.90.
- Who manufactures KRF95-16?
- KRF95-16 is a Elpress product in the Electrical Components range.
- Is a datasheet available for KRF95-16?
- Yes — the KRF95-16 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRF95-16?
- The minimum order quantity is 1.
- Is KRF95-16 available?
- Yes — KRF95-16 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
