Product Description

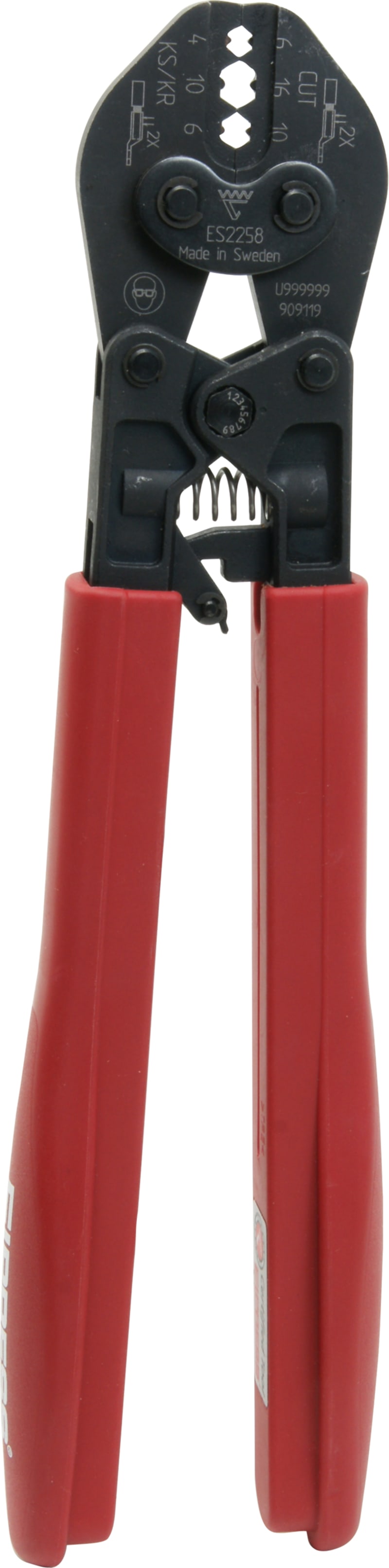

Elpress crimping tool, 4–16 mm². Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- ES2258
- EAN / GTIN
- 7393487042780
- HS code
- 8544.42
- Sales unit
- pcs
- Article number
- 5111-226200
- Type designation
- ES2258
- Ratchet function that does not trigger until completed crimp
- Yes
- Crimp geometries
- Hexagonal
- AWG/MCM Cu
- 12 - 6 AWG
- mm² Cu
- 6-16
- mm² KR/KS, KRF/KSF
- 4-10
- Through conductor, Min (mm²)
- 6
- Through conductor, Max (mm²)
- 16
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Mechanic
- Compression shape
- Hexagon
- With locking device (for mechanical tools)
- Yes
- Cross section, Min (mm²)
- 4
- Cross section, Max (mm²)
- 16
- AWG-range, Min
- 11
- AWG-range, Max
- 5
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Number of included inserts
- 1
- Compression force, Max (kN)
- 5
- Length (mm)
- 300
- Pieces per pack
- 1
- Net weight (kg)
- 0.66
- Height Pack (mm)
- 35
- Depth Pack (mm)
- 335
- Width Pack (mm)
- 125
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7393487042780
- SAP 1000098889
- Code 8945343
Product Documentation
More from Elpress
Elpress
Elpress AKK70-8 Aluminium-Copper Bimetallic Compression Cable Lug 70 mm² M8
Elpress
Elpress A2,5-18ET Insulated End Ferrule 2.5 mm² 18 mm
Elpress

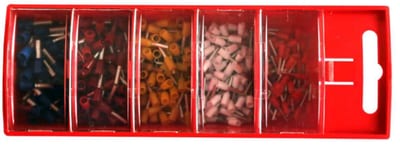

SD0525 (7905-003500)
Elpress
Elpress A1,5-10ET Insulated End Ferrule 1.5 mm² 10 mm
Elpress
Elpress Crimping tool, Cu 10–95 mm² / Al 16–25 mm²
T2600
Elpress

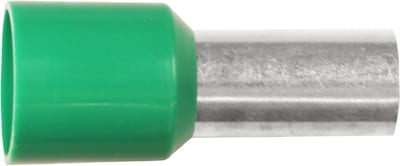

Elpress A16-18ET Insulated End Ferrule 16 mm² 18 mm
