Product Description

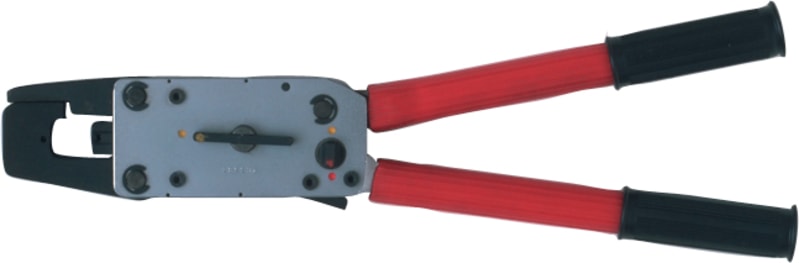

Elpress crimping tool, Cu 10–95 mm² / Al 16–25 mm². Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- T2600
- EAN / GTIN
- 7393487000049
- Sales unit
- pcs
- Article number
- 5103-009200
- Type designation
- T2600
- Fast forward function
- Yes
- Delivery box
- Metal box
- Crimp geometries
- Punch, Hexagonal, Oval
- AWG/MCM Stranded Al
- 6 - 4 AWG
- AWG/MCM Solid Al
- 6 - 2 AWG
- AWG/MCM Cu
- 10 - 6 AWG
- mm² Stranded Al
- 16-25
- mm² Solid Al
- 16-35
- mm² Cu
- 10-95
- Crimp range Cu-terminals min (mm²)
- 10
- Crimp range Cu-terminals max (mm²)
- 95
- Crimp range C-connectors min (mm²)
- 6/6
- Crimp range C-connectors max (mm²)
- 25/25
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 25
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Mechanic
- Compression shape
- Universal (exchangeable inserts)
- With locking device (for mechanical tools)
- Yes
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 95
- AWG-range, Min
- 8
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Compression force, Max (kN)
- 57
- Length (mm)
- 440
- Pieces per pack
- 1
- Net weight (kg)
- 1.9
- Height Pack (mm)
- 52
- Depth Pack (mm)
- 445
- Width Pack (mm)
- 185
- Cross section
- 10–95 mm²
- Compression force
- 0–57 kN
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487000049
- SAP 1000417198
- Code 826853
Product Documentation
Document preview: Elpress Crimping tool, Cu 10–95 mm² / Al 16–25 mm² (T2600) — Specification sheet
