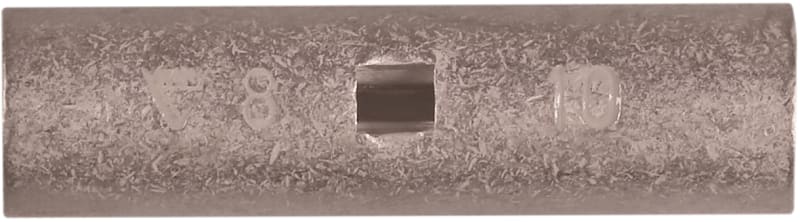

Elpress KS10 Copper Compression Through Connector 10 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KS10 — copper compression through connector (splice sleeve) for jointing 10 mm² copper conductors end to end. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a cable inspection hole and internal cable stop. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5/6) copper conductors. Crimped with matching Elpress dies to a gas-tight, low-resistance joint tested to IEC 61238-1. Approvals: UL File E205350.
Technical Specifications
- Type
- Copper compression through connector (splice sleeve)
- Conductor cross-section
- 10 mm²
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5/6) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole, internal cable stop
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- UL File E205350
- Manufacturer part number (MPN)
- KS10
- EAN / GTIN
- 7393487007888
- Sales unit
- pack
- Package quantity
- 100 pack
- HS code
- 8536.90
- Article number
- 7303-000700
- Type designation
- KS10
- d (mm)
- 5
- L (mm)
- 30
- s (mm) - strip length
- 15
- AWG/MCM Cu
- 8 AWG
- mm² Cu
- 10
- Model
- UL version
- Type of connection
- Cross connector
- Surface protection
- Tin plated
- Insulation
- EV000494
- Voltage level
- Up to 35 kV
- AWG-range, Min
- 8
- AWG-range, Max
- 8
- Nominal cross section, Min (mm²)
- 10
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.008
- Height Pack (mm)
- 70
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487007888
- SAP 1000047876
- Code 8805458
