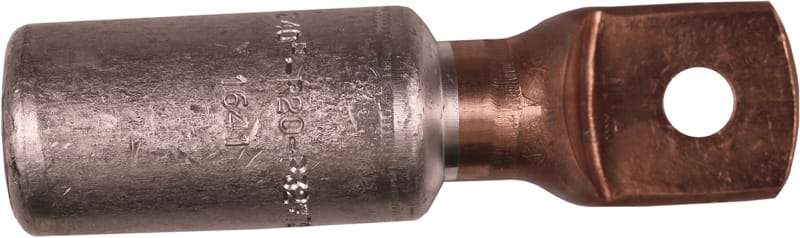

Elpress AKK240-12 Aluminium-Copper Bimetallic Compression Cable Lug 240 mm² M12
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKK240-12 — bimetallic (AlCu) compression cable lug for terminating a 240 mm² aluminium conductor onto an M12 copper stud connection. The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor can be connected directly to a copper busbar or apparatus without a separate bimetal washer. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors; two compression crimps are made on the aluminium barrel. Tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- AlCu bimetallic compression cable lug
- Conductor cross-section
- 240 mm² (aluminium)
- Stud / bolt hole
- M12
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Friction-welded solid aluminium barrel + electrolytic copper palm
- Connection
- Aluminium conductor to copper busbar / apparatus
- Crimp
- Two compression crimps on the aluminium barrel
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AKK240-12
- EAN / GTIN
- 7393487009547
- Sales unit
- pack
- Package quantity
- 12 pack
- HS code
- 8536.90
- Article number
- 7331-403900
- Type designation
- AKK240-12
- W (mm)
- 30
- N (mm)
- 15
- N1 (mm)
- 15
- P (mm)
- 30
- d (mm)
- 19.8
- L (mm)
- 116
- t (mm) - palm thickness
- 6.5
- s (mm) - strip length
- 61
- Screw
- M12
- AWG/MCM Stranded Al
- 450 MCM
- mm² Stranded Al
- 240
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 12
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 240
- Pieces per pack
- 12
- Net weight (kg)
- 0.186
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009547
- SAP 1000075581
- Code 8782886
Product Documentation
