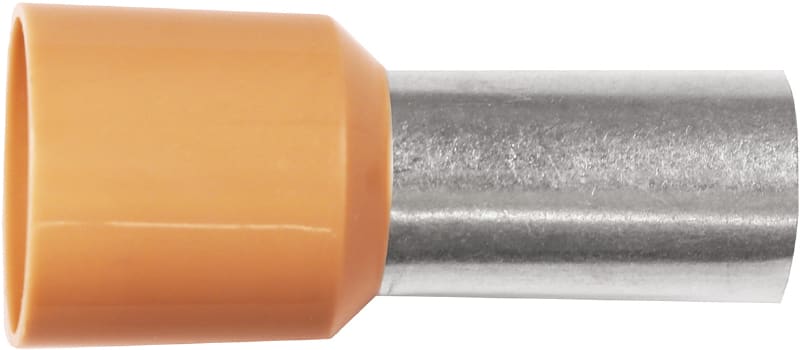

Elpress A35-16ET Insulated End Ferrule 35 mm² 16 mm

Elpress A35-16ET — pre-insulated end ferrule (cord-end / bootlace terminal) for terminating a 35 mm² stranded conductor, with a 16 mm tinned-copper barrel and a polypropylene insulating collar. The barrel is electrolytic copper (Cu 99.95%) tin-plated (Cu/Sn); the neck is brazed and annealed so it can be crimped in any orientation. Insulation and dimensions conform to DIN 46228-4; halogen-free. Crimped with matching Elpress dies (System Elpress) for a gas-tight termination into terminal blocks, connectors and switchgear. Operating temperature −5 °C to +105 °C. Approvals: CSA, UL, CE, UKCA; REACH / RoHS compliant.

Type

Pre-insulated end ferrule (cord-end terminal)

Conductor cross-section

35 mm²

Insulated barrel length

16 mm

Barrel material

Electrolytic copper Cu 99.95%, tin-plated (Cu/Sn)

Insulation

Polypropylene (PP), halogen-free

Standard

DIN 46228-4

Operating temperature

−5 °C to +105 °C

Crimp system

System Elpress; brazed and annealed neck (crimp in any direction)

Approvals

CSA, UL, CE, UKCA; REACH / RoHS

Manufacturer part number (MPN)

A35-16ET

EAN / GTIN

7393487013261

Sales unit

pcs

Package quantity

50 pcs

HS code

8536.90

Article number

7287-008900

Type designation

A35-16ET

d (mm)

12.3

L1 (mm)

16

L (mm)

30

s (mm) - strip length

18

Working temperature, Min (°C)

-5

Working temperature, Max (°C)

105

Insulation material

PP

Insulation colour

Beige (end sleeves)

Material

Cu, Cu/Sn

Measures acc DIN46228

Yes

AWG/MCM Cu

2 AWG

mm² Cu

35

Colour

Beige

Sleeve length (mm)

16

Insulated

Yes

Halogen free

Yes

Surface protection

Tin plated

Construction type

Standard

Material insulation

PP (Polypropylene)

AWG size

2

Nominal cross section (mm²)

35

Pieces per pack

50

Net weight (kg)

0.0014

Height Pack (mm)

85

Depth Pack (mm)

180

Width Pack (mm)

145

HS Code

8536.90

• EAN 7393487013261
• MPN A35-16ET
