Product Description

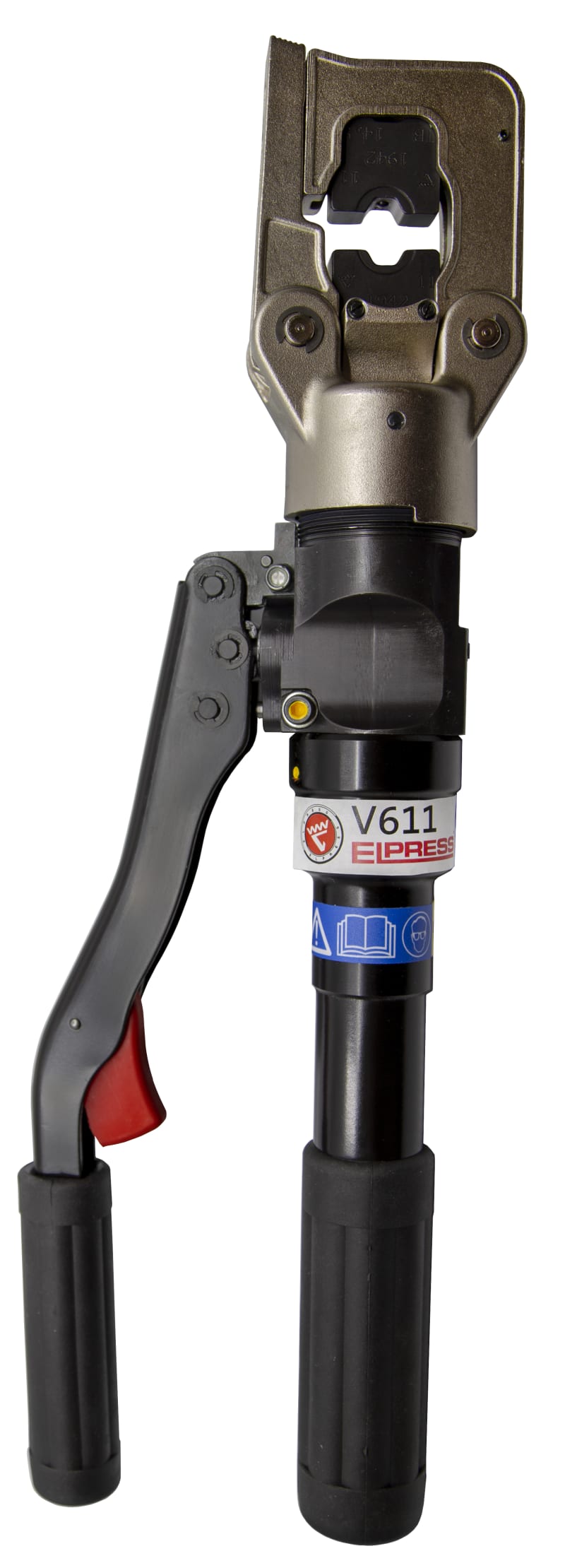

The Elpress V611 is a hand-operated hydraulic crimping tool for copper cable lugs and connectors of the KRF/KSF ranges, covering conductor cross-sections from 10 to 150 mm2. It delivers 60 kN compression force with automatic return and interchangeable inserts supporting punch, hexagonal, and oval crimp geometries; supplied in a plastic case. Typical applications include field termination of power cables in switchgear, motor-control panels, and site distribution work.
Technical Specifications
- Manufacturer part number (MPN)
- V611
- EAN / GTIN
- 7393487026971
- Sales unit
- pcs
- Article number
- 5202-001600
- Type designation
- V611
- Fast forward function
- Yes
- Delivery box
- Plastic case
- Crimp geometries
- Punch, Hexagonal, Oval
- AWG/MCM Stranded Al
- 6 - 4 AWG
- AWG/MCM Solid Al
- 6 - 2 AWG
- AWG/MCM Cu
- 18 - 10 AWG
- mm² Stranded Al
- 16-25
- mm² Solid Al
- 16-35
- mm² Cu
- 10-240
- mm² KR/KS, KRF/KSF
- 10-150
- mm² KRT/KST
- 10-240
- mm² KRD/KSD
- 16-185
- Crimp range C-connectors min (mm²)
- 6/6
- Crimp range C-connectors max (mm²)
- 50/50
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 25
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Hand hydraulic
- Compression shape
- Universal (exchangeable inserts)
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 150
- AWG-range, Min
- 8
- AWG-range, Max
- 300
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Compression force, Min (kN)
- 60
- Compression force, Max (kN)
- 60
- Length (mm)
- 425
- Pieces per pack
- 1
- Net weight (kg)
- 4.2
- Height Pack (mm)
- 110
- Depth Pack (mm)
- 300
- Width Pack (mm)
- 510
- With locking device (for mechanical tools)
- No
- Cross section
- 10–150 mm²
- AWG-range
- 7–500
- Compression force
- 60 kN
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8467.89
Cross References
- EAN 7393487026971
- SAP 1000038255
- Code 8518636
