Elma Instruments
Kewmate 2012R-TRUE RMS in
Part number42.KEW2012RAEAN / GTIN5706445250967HS code9031.80
Measurement & Inspection Tools
Electrical Test Instruments
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

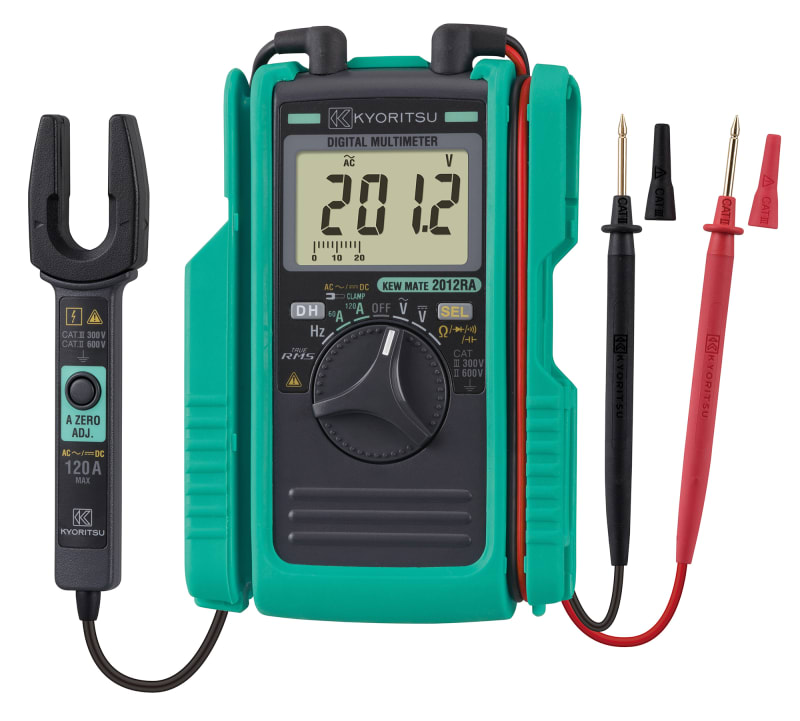

Elma Instruments 42.KEW2012RA KEW MATE 2012 is a small multimeter with integrated current clamp and autokalibrering.
Technical Specifications
- Manufacturer part number (MPN)
- 42.KEW2012RA
- EAN / GTIN
- 5706445250967
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Current supply
- Battery
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Manual/automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Interface
- No
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Measurement principle
- True root mean square
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Analogue bar graph display
- Yes
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.1 mV
- Lowest resolution, DC current
- 0.1 µA
- Lowest resolution, AC voltage
- 0.1 mV
- Lowest resolution, AC current
- 0.1 µA
- Lowest resolution, resistance
- 0.1 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 600 V
- Max. voltage measuring range DC
- 600 V
- Max. current measuring range, AC
- 120 A
- Max. current measuring range, DC
- 120 A
- Max. resistance measuring range
- 60 MOhm
- Max. value storage
- Yes
- Multiple display
- Yes
- Measuring circuit category
- CAT III
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- Yes
- Peak value memory
- Yes
- Duty cycle measurements
- No
- Max. capacitance measuring range
- 4000 µF
- Lowest resolution, capacitance
- 0.1 µF
- Max. frequency measuring range
- 10000 kHz
- Lowest resolution, frequency
- 0.1 Hz
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- Yes
- Max. voltage measuring circuit category
- 300 V
- Max. voltage measuring range AC/DC
- 600 V
- Max. current measuring range, AC/DC
- 120 A
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 5706445250967
- SAP 1000098609
- Code 8897202
Product Documentation
Document preview: Kewmate 2012R-TRUE RMS in (42.KEW2012RA) — Specification sheet
