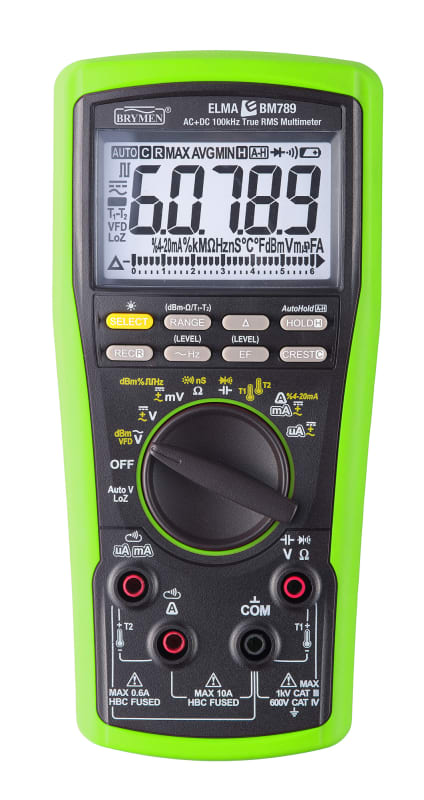

Elma BM789 True-RMS AC+DC Digital Multimeter CAT IV
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma BM789 is a true-RMS AC+DC digital multimeter in a slim handheld housing. Measures voltage and current up to 1000 V AC/DC, resistance up to 60 GΩ, capacitance, frequency and temperature up to 1090 °C with continuity, diode test and analogue bar graph. Rated to CAT IV for use on service entrances, industrial machinery and building electrical systems.
Technical Specifications
- Manufacturer part number (MPN)
- Elma BM789
- EAN / GTIN
- 5706445410439
- Sales unit
- pcs
- Current supply
- Battery
- Measured value memory
- Yes
- Indication
- Digital
- Measuring range selection
- Manual/automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Interface
- No
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Measurement principle
- True root mean square
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Analogue bar graph display
- Yes
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.0001 mV
- Lowest resolution, DC current
- 600 µA
- Lowest resolution, AC voltage
- 0.0001 mV
- Lowest resolution, AC current
- 600 µA
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 1000 V
- Max. voltage measuring range DC
- 1000 V
- Max. current measuring range, AC
- 10000 A
- Max. current measuring range, DC
- 10000 A
- Max. resistance measuring range
- 60000 MOhm
- Max. value storage
- No
- Multiple display
- Yes
- Measuring circuit category
- CAT IV
- Min. value storage
- No
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- Yes
- Peak value memory
- Yes
- Duty cycle measurements
- No
- Temperature measurement
- Yes
- Max. temperature measuring range
- 1090 °C
- Lowest resolution temperature
- 0.01 °C
- Max. capacitance measuring range
- 10000 µF
- Lowest resolution, capacitance
- 0.001 µF
- Max. frequency measuring range
- 10000 kHz
- Lowest resolution, frequency
- 0.1 Hz
- Analogue bar graph display analogue/logarithmical
- Yes
- Temperature measurement RTD
- No
- Temperature measurement TC
- Yes
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- With display backlight
- Yes
- Country of origin
- Taiwan
Standards & Compliance
- HS Code
- 9030.89
Cross References
- EAN 5706445410439
- SAP 1200548004
- Code 82875628
Product Documentation
